The rapid adoption of solar energy has led to an increase in solar panel installations worldwide, raising concerns about their end-of-life disposal and environmental impact. Solar panels, primarily composed of glass (76%), aluminium (8%), silicon (5%), plastic (10%) and various metals (1%), have a lifespan of 25 to 30 years. The International Renewable Energy Agency estimated there to be about 78 million metric tons of waste in the world by 2050. By 2030, it is estimated that the world will have accumulated about 8 million metric tons of PV panel waste.
As more panels reach the end of their operational life, recycling becomes essential to manage waste and recover valuable materials. Recycling techniques like thermal, mechanical, and chemical processes are employed to recover high-purity silicon, silver, copper, and other metals. Recycling not only reduces the environmental burden but also provides a sustainable supply of raw materials, contributing to the circular economy.
Recycling of solar panels currently stands only at about 10%, with the remaining 90% ending up in landfills. As of 2022, the installed capacity of solar panels globally was 100 GW. Projections indicate total installations to grow to about 1600 GW by 2030. In the coming years, as a significant portion of these panels reach the end of their lifecycle, a substantial opportunity will be presented to manufactures and businesses to explore recycling and reuse options.
In this study, we explore the current percentage of solar panels installations around the world, different recycling methods, probable value generation after recycling and how organizations benefit by working on different factors like adoption and innovation in recycling methods, modern designs for solar Photovoltaic (PV) panels, initiation of new industrial growth, employment and promote sustainable practices.
Solar panels with System of Photovoltaic (PV) modules include several hazardous materials, with the amount and type of chemicals used depending on the type of cells used in the modules. Once PV modules reached the end of their operational life, they are classified as waste. If disposed improperly in landfills without sufficient treatment, they can pose significant environmental and human health risks. This could occur through the release of hazardous metals, such as lead and cadmium or through the loss of conventional resources such as glass, aluminium, and rare metals.
The development of PV-specific collection and recycling regulations, including recycling and treatment standards for PV modules, will help to consistently, efficiently, and sustainably, deal with increasing waste volumes. Recycling of solar panels will help reduce the adverse environmental impacts by avoiding landfills, reducing electronic waste, creating energy saving options and economic opportunities while manufacturing new panels.
Fig 2 Source: https://www.cleanfuture.co.in/2020/04/03/panel-recycling-for-99-recovery/

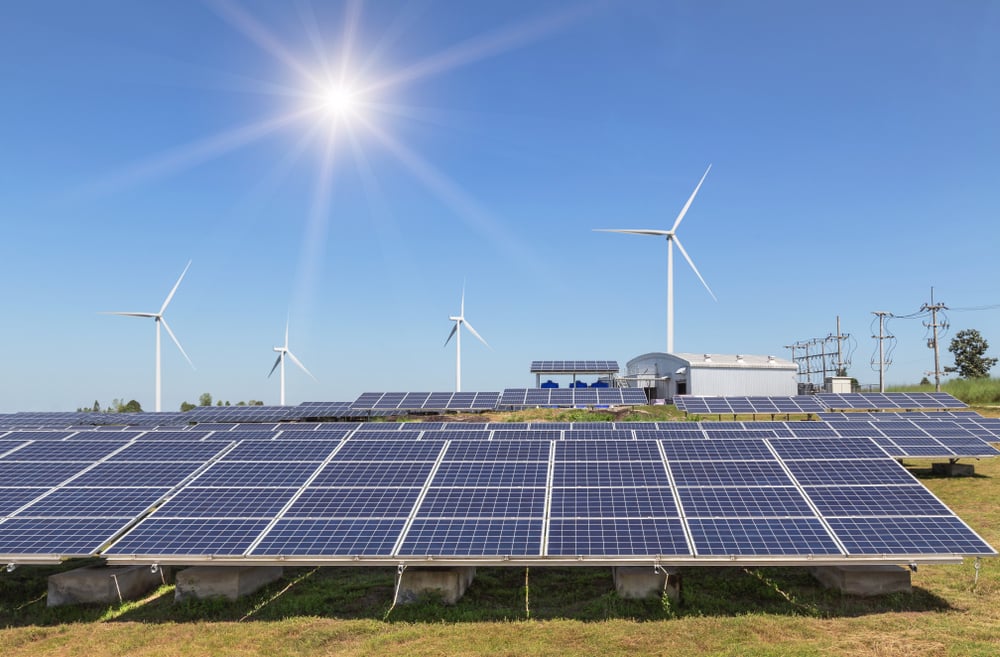

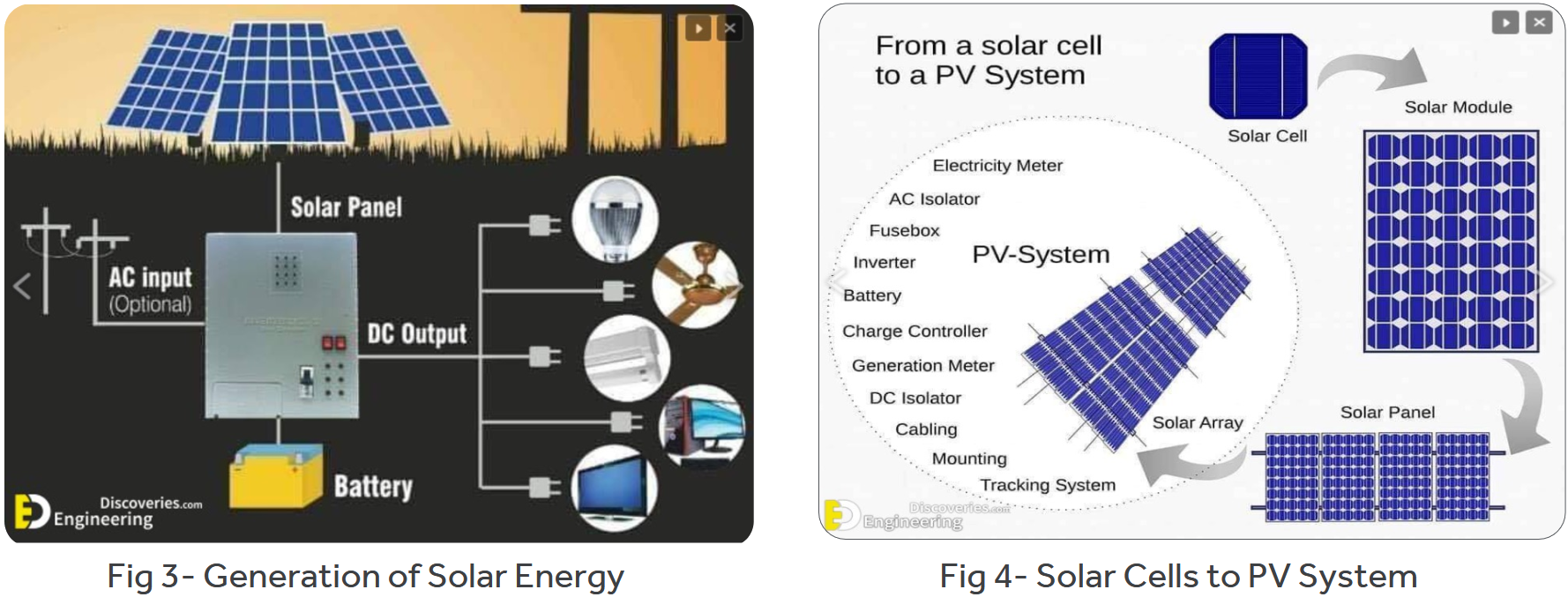

A photovoltaic system consists of one or more solar panels, a power inverter that converts DC electricity to alternating current (AC) electricity, and sometimes other components such as controllers, meters, and trackers. A photovoltaic system can be used to provide electricity for off-grid applications, such as remote homes or cabins, or to feed electricity into the grid and earn credits or payments from the utility company.
Source: https://engineeringdiscoveries.com/solar-power-plant-main-components-working-advantages-and-disadvantages/
Generally, one solar cell size ranges from 0.5 inches to 4.0 inches, which generates a power output of 1 to 2 watts. Power generation capacity of solar panels such as small solar panels ranges between 50W to 100W; with standard solar panels generating between 200W-500W and, big solar panel systems having multiple panels connected to form a PV system generating about 1KW to 10KW of power.
Power generated by solar panels depends on the type of panel used and the sun’s position in the sky. On an average, 300W to 400W solar panels can generate 0.9KWH to 1.8KWH assuming 4 to 6 hours of the sun’s location.
Generally, a residence with 4 to 5 members should install a 2KW to 3KW grid connected solar system to meet their power requirements with surplus power being supplied back to the grid so as to reduce the load and receive credits in monthly consumption.
Crystalline-silicon solar panels contain solar cells made from a crystal silicon structure. These solar panels typically contain smaller amounts of valuable metals embedded within the panel, including silver and copper. Crystalline-silicon solar panels are efficient, cost effective, and have prolonged lifetimes, with modules expected to last for 25 years or longer.

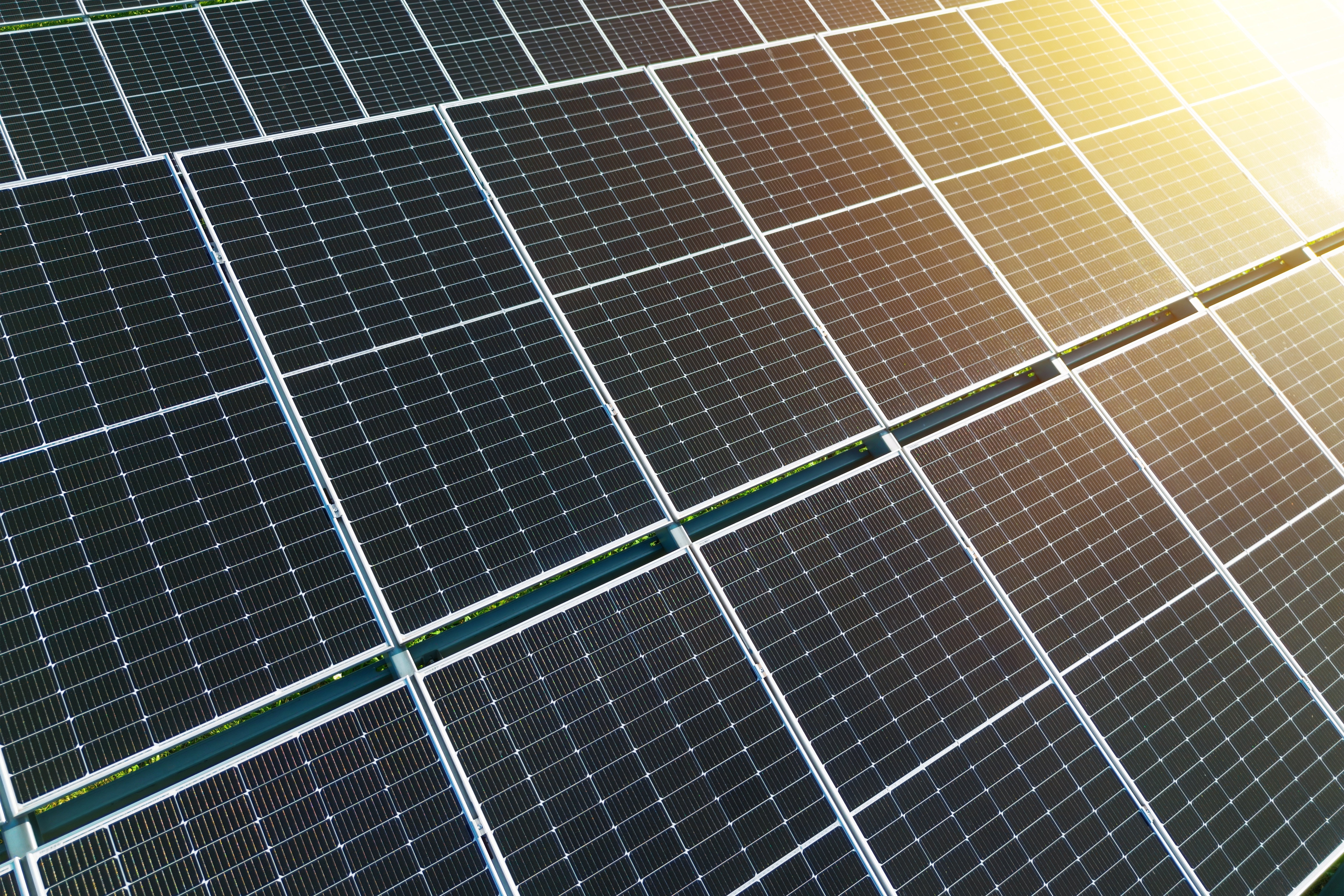

Fig 5- Monocrystalline PV Solar Cell Panels
Fig 6- Rows Array Polycrystalline Silicon Solar Panels
A monocrystalline solar panel is made from monocrystalline solar cells or "wafers." Monocrystalline wafers are made from a single silicon crystal formed into a cylindrical silicon ingot. These panels are considered a premium solar product due to higher efficiencies and sleeker aesthetics.
Polycrystalline solar panels, also known as multi-crystalline panels, are a common type of solar panel used in residential and commercial settings. They are made up of multiple silicon crystal fragments. This manufacturing distinction gives polycrystalline panels a unique appearance that resembles a mosaic of different shades of blue.
Thin-film solar cells contain thin layers of semiconductor material, such as cadmium telluride (CdTe) or copper indium gallium di selenide (CIGS), layered on a supporting material such as glass, plastic, or metal. CdTe is the second-most common PV material after silicon, and cells can be made using low-cost manufacturing processes, but their efficiencies are not as high as silicon solar PV.
Fig 7- Thin-film solar batteries

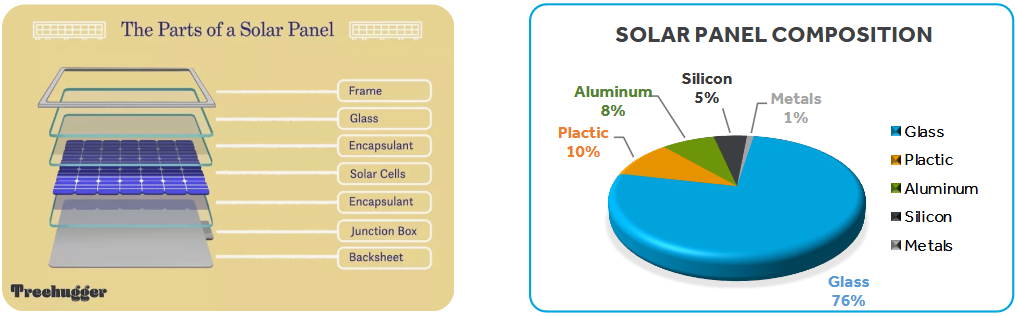

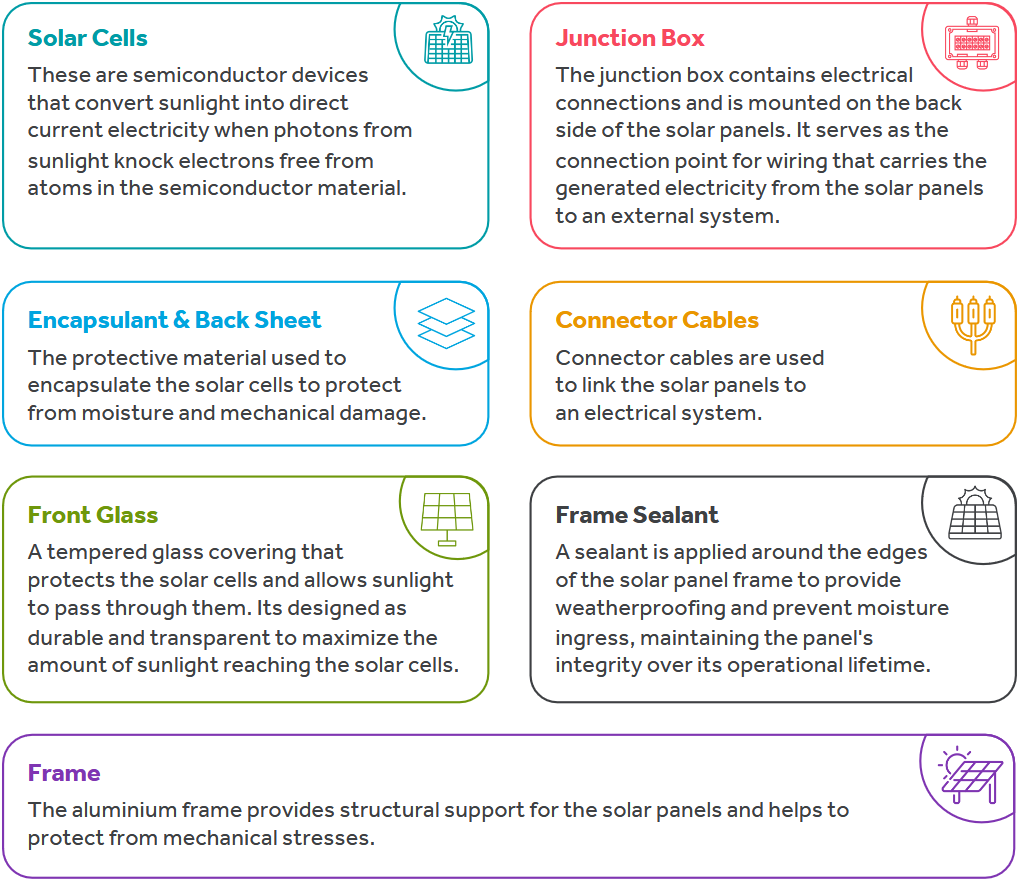

Fig 8 & 9- What Are Solar Panels Made Of? The Parts of a Solar Panel
Source: https://www.treehugger.com/what-are-solar-panels-made-of-5179704
Solar panels naturally experience a decline in efficiency due to exposure to sunlight, temperature fluctuations, humidity, mechanical stress, the quality of manufacturing and materials used. Other factors such as dirt, debris, foreign objects, cracks etc can also decrease the efficiency of solar panels. On an average, most solar panels have a yearly degradation rate of about 0.5% to 0.8%.
EOL solar panels are considered rich waste because they have valuable metals, e.g., silver, aluminium, copper, tin, and silicon. The recovery of such valuable metals or materials has positive impacts on both environmental and economic viewpoints. Further, this contributes to energy saving, the availability of valuable materials and actively addresses the issue of electronic waste management.
As of 2022, the total energy generated from solar PV installations was more than 1000 GW worldwide. Countries like China, the USA, Australia, India, Germany, and the UK play a significant role in solar energy generation.

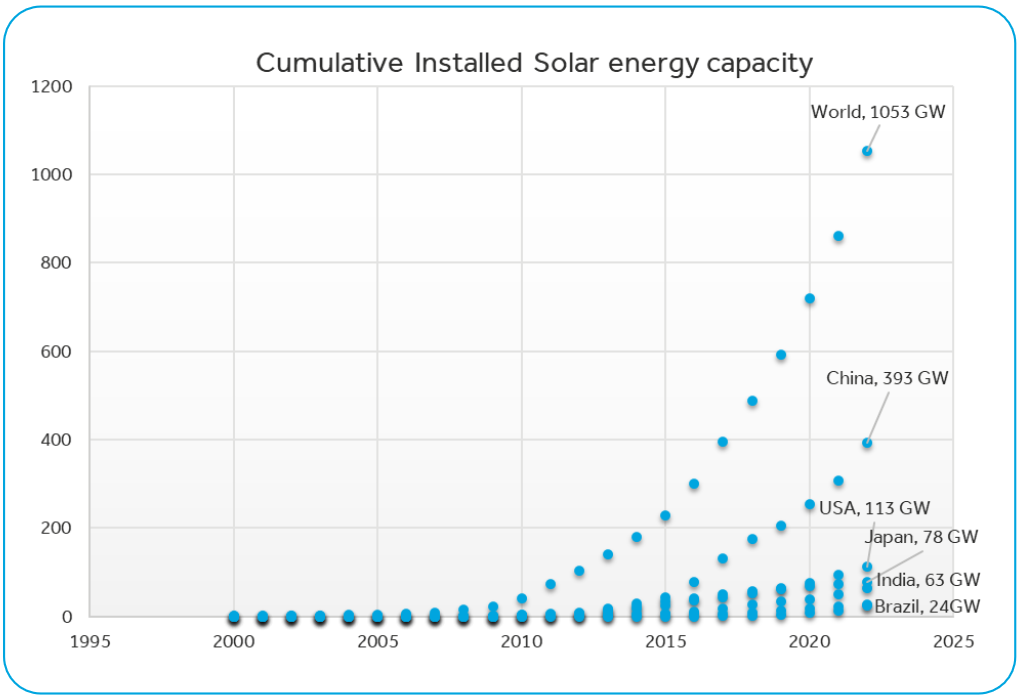

Fig 10 -Installed solar energy capacity
Source: https://ourworldindata.org/grapher/installed-solar-pv-capacity

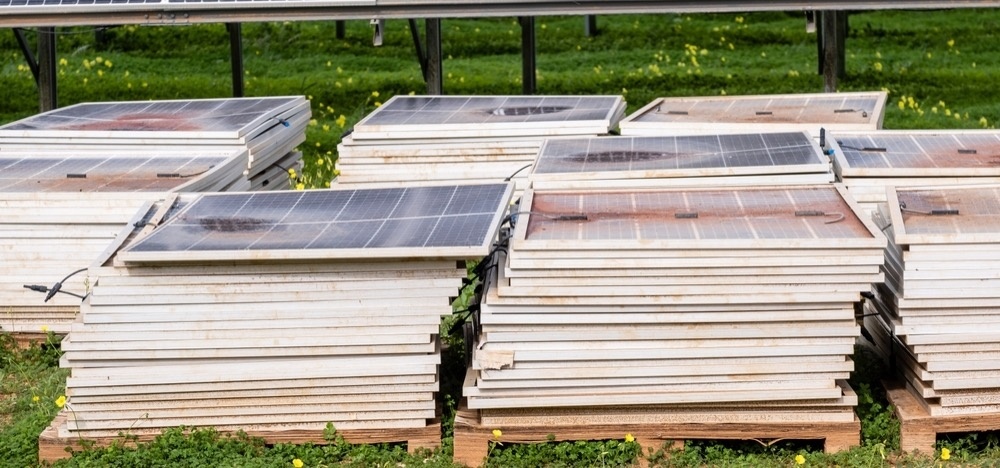

Solar photovoltaic panels, whose operating life is 20 to 30 years, lose productivity over time. The International Renewable Energy Agency estimated that there would be about 78 million metric tons of waste in the world by 2050. In 2030, it is estimated that the world will have accumulated about 1.7 million metric tons of PV panel waste.

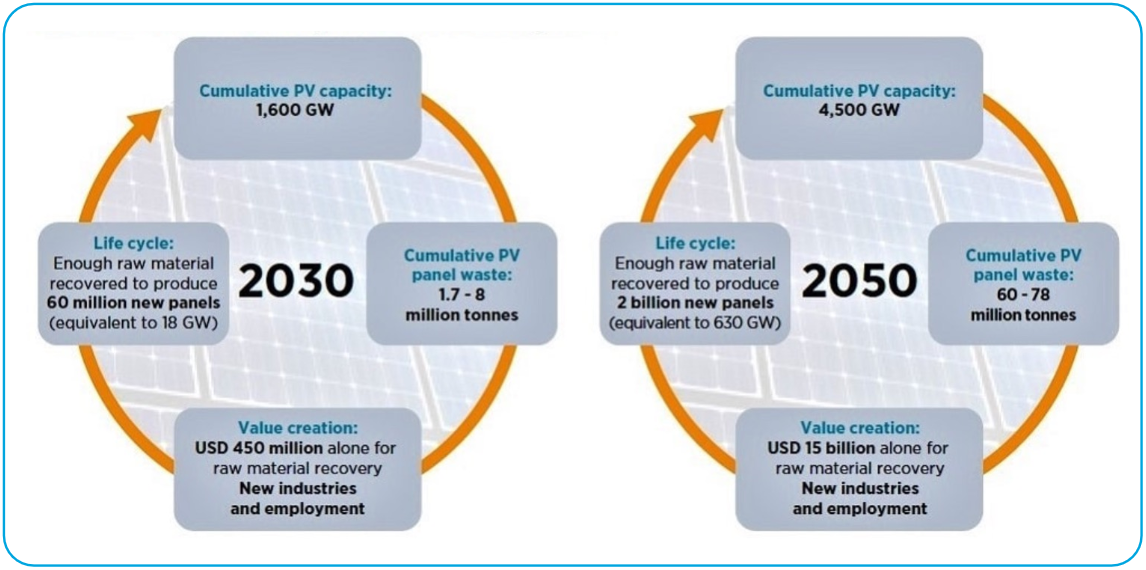

Fig 11 - Potential value creation through PV end-of-life management
Source: https://avenston.com/en/articles/solar-second-life/
Solar energy is the fastest-growing renewable energy source and is projected to continue to accelerate, driven by the global shift away from fossil fuel dependency and the increasing adoption of clean energy solutions to mitigate climate change. Historically, decommissioned solar panels mostly went to landfills. However, given the current advancements about 95% of the materials’ value can be recycled to recover and reused.
“Estimated 78 million tons of solar panel waste expected by 2050, recycling is necessary to mitigate the negative environmental impact of this rapidly growing industry”. Currently, average landfill disposal costs can range from $5 to $20 per panel. This can go down as low as $1 when compared to recycling cost, which can range from $10 to $40 per panel depending on type, installations, technology/method, and other aspects of the panel.
Solar panels recycling- Reduces hazardous landfill waste, helps reclaim valuable materials, creates employment opportunities, supports local economies, and cuts down costs of a new installation.
The value of recoverable materials which would be enough to power 630 GW with 2 billion solar panels by 2050. Globally, it is expected that end-of-life (EOL) solar panels will drive the solar panel recycling business in the next 10-20 years.

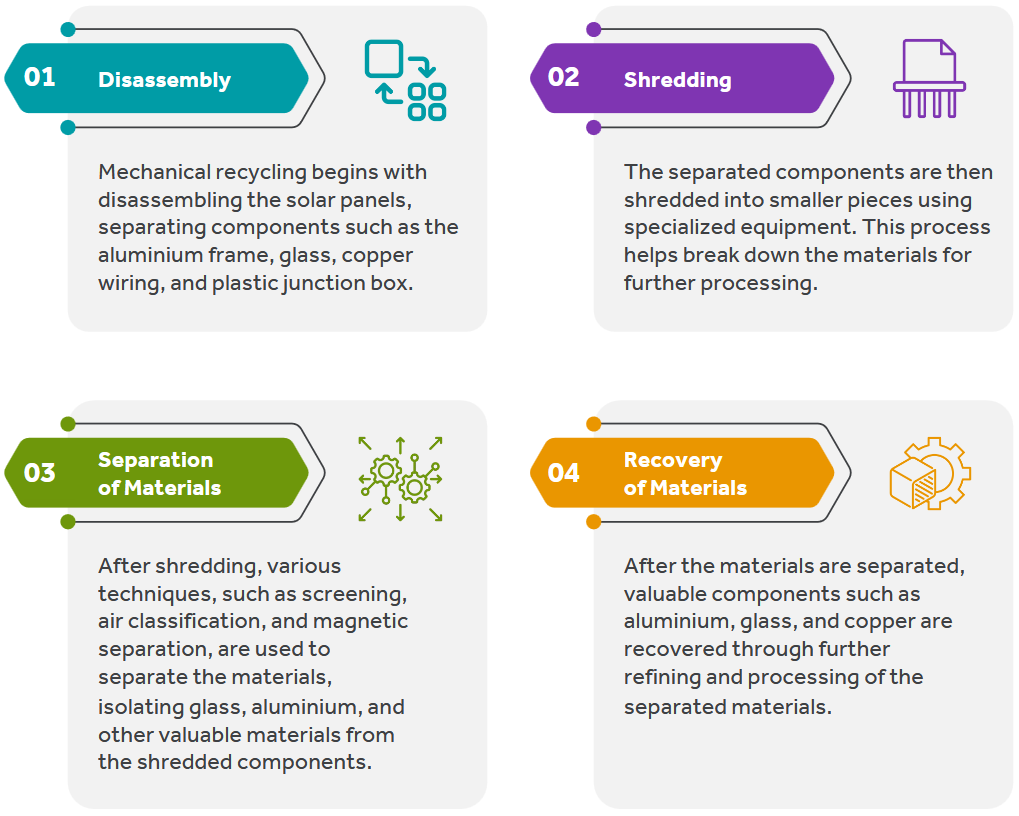

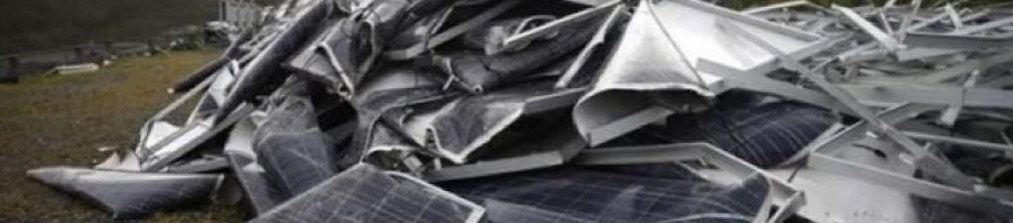

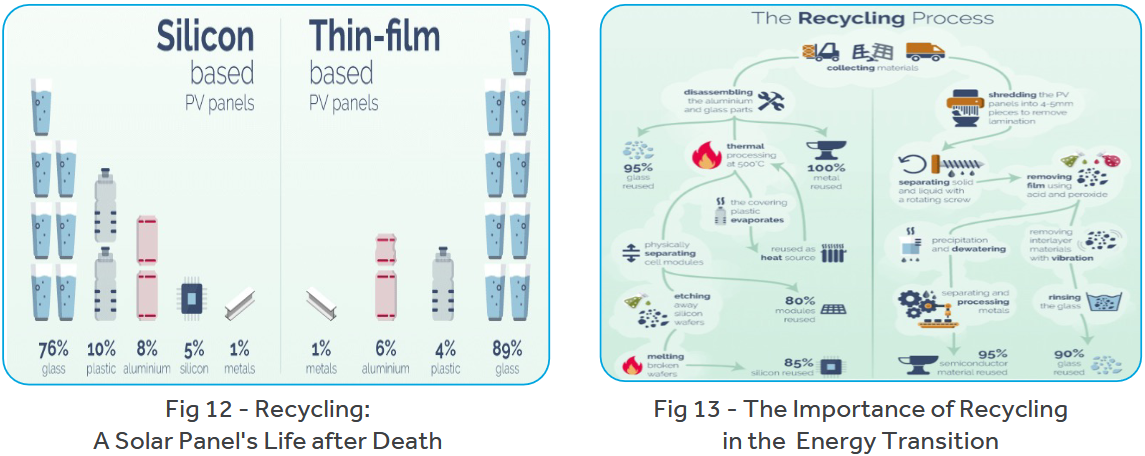

Solar panels consist of materials like glass, aluminium frames, copper wires, plastic junction boxes, and other metals with silicon. Once panels come to the end of the lifecycle, 95% of the solar panel materials can be reused or recycled. Recycling can be performed by using mechanical, thermal, and chemical methods to remove the materials.
Separation of materials using shredders, sieves, and magnets for sorting and recycling the varied materials. During this process, the solar PV module is crushed before glass is recovered through separation or other methods. This is an advantageous process as glass can be recovered without the use of chemicals or high temperatures. Another process includes hot- wire cutting to remove glass without shredding the solar panel. This approach recovers the solar wafer with minimal damage and does not require the use of chemicals or high temperatures. Mechanical recycling involves the following steps-
This method involves heating solar panels to a high temperature, melting down the glass, plastic to recover valuable materials. The metal frame can be separated using magnets. During thermal recycling, solar modules withstand temperatures ranging from 450 degrees Celsius to 650 degrees Celsius so as to facilitate the burning of the Ethyl vinyl acetate (EVA) layer off the solar wafer. At such high temperatures, a 91% recovery rate for clean glass can be expected for recycling. Using this method produces emissions and chemical compounds, including methane, carbon monoxide, and hydrogen fluoride.
Another approach can be Electrothermal Heating which can reduce emissions and yield clean glass. However, the electrothermal process cracks the solar wafer and requires additional processes to recover raw materials.
The Thermal recycling process involves the following steps
This process involves heating the solar panels in a low-oxygen environment to break them down into smaller components for the recovery of valuable materials such as silicon cells, metals, and glass.
Solar panels are subjected to high-temperature treatment to break down the polymer layers and other non-metallic components. This helps in separating the materials for further processing.

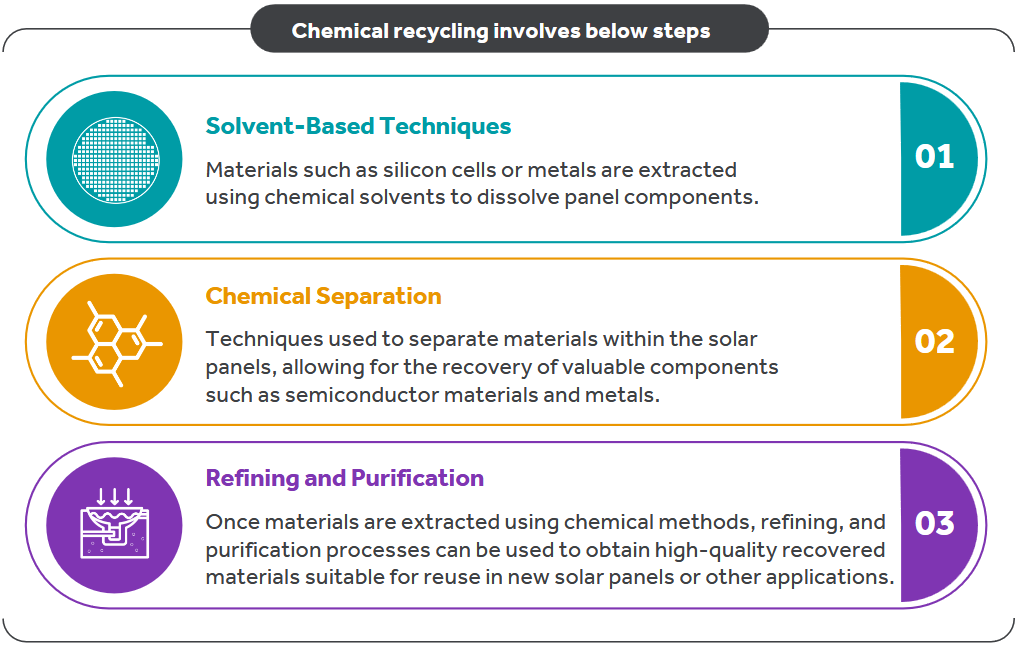

Use of chemical solvents or acids to break down the solar panel components into individual materials that can be recovered and recycled. When solar PV panels are chemically recycled, various acids and chemicals are employed to extract and purify valuable metals from the solar wafer. While these chemical processes effectively recover high-value minerals, the chemicals and acids involved in this process are hazardous, making it difficult to implement chemical recycling on a commercial scale.
While a combination of the above processes is necessary to recycle a solar PV panel, each process has its unique limitations. Scientists and governing bodies are exploring different materials and manufacturing methods for solar PV panels with the aim of streamlining and simplifying the recycling process.
Simultaneously, keeping the focus on material choices during the production process can potentially reduce waste generated by solar PV panels when they reach the end of their life cycle.
There are global efforts to improve solar panel recycling, including the creation of industry associations such as PV Cycle in Europe and the Solar Energy Industries Association, that enact regulations and policies to encourage solar panel recycling and reducing waste. Key stakeholders such as solar panel manufacturers, recyclers, and consumers all play a role in promoting sustainability in the industry. Major challenges such as complex material composition, hazardous materials, lack of standardization, economic viability, volume and collection needs to be addressed.
Innovation & Technology Development- Innovations in existing recycling methods and separation methods will be helpful to recover the valuable materials easily. Using modular design principles and methods for easier disassemble will be helpful for replacing any specific part instead of replacing entire solar panel from the location. Existing solar panels can also be used for a second life in rural and underdeveloped areas for energy storage systems.
Technologies like AI can be implemented for material sorting improving the efficiency of the recycling facilities and adopting AI modules for preventive maintenance.
Sustainability- Promoting innovation-driven research into new recycling methods, supporting recycling facilities with renewable energy resources and providing funding or tax benefits to recycling facilities will help reduce, reuse and recycling of the solar panels.
Solar panel recycling is a crucial aspect of sustainable energy practices, aiming to mitigate the environmental impact of photovoltaic (PV) technology. Mechanical, chemical, and thermal recycling methods will help to recover the valuable materials from the existing solar panels, reduce the electronic waste and helps to reduce environment impacts. Continuous improvement in recycling methods, use of digital technologies for new recycling methods will help to reduce the solar panels waste.
Several challenges including the development of efficient and cost-effective recycling technologies, as well as the establishment of comprehensive collection and recycling infrastructure. Collaborative initiatives among industry stakeholders, policymakers, and environmental organizations are essential to overcoming these challenges and promoting sustainable practices.
