Introduction
The adoption of TSN is revolutionizing industrial communication landscapes by bridging the gap between IT and OT networks. Initially developed for audio/video systems, TSN’s transition to industrial applications provides enterprises with robust, interoperable communication solutions. With the exponential growth of Industry 4.0 technologies, businesses increasingly turn to TSN to manage the complexities of converged networks requiring time sensitivity. TSN enables synchronized operations, real-time data exchange, and prioritized traffic handling, which is crucial for ensuring operational efficiency and reliability in mission-critical environments. By leveraging IEEE-defined TSN standards, organizations can achieve scalable and deterministic networking solutions, fostering seamless integration of IT-OT systems and ensuring readiness for future technological advancements.
Most industry OT-IT network architects still use proprietary industrial ethernet protocols such as Powerlink, Device net, CC-Link IE, Profinet, Ether Cat, Modbus TCO, and most frequently used OPC-UA for OT-IT Networks, enabling and managing communication within industrial equipment. However, with the advancement in rolling Private 5G networks at enterprises, there has been an increase in the adoption of Automotive Ethernet use cases. These business units increasingly turn toward converged networks with a holistic integration of Information and Operational Technologists, who are all set to change the status of the industrial communication landscape and create a bright foundation for the convergence of IT and OT networks.
Global Automotive Ethernet Market Overview

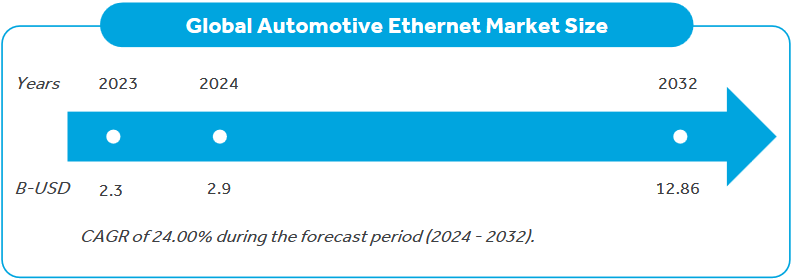

The global automotive Ethernet market is experiencing rapid growth driven by advancements in vehicle connectivity and autonomous technologies. Ethernet’s high bandwidth and low latency make it the backbone of modern automotive communication systems. The market is valued at USD 2.3 billion in 2024 and is projected to grow at a CAGR of 24.00%, reaching USD 12.86 billion by 2032. This growth is fueled by the increasing adoption of ADAS (Advanced Driver Assistance Systems), zonal architectures, and next-generation infotainment systems. TSN’s integration into automotive Ethernet networks is critical in addressing autonomous vehicles' stringent performance and reliability requirements, ensuring seamless data transmission between sensors, controllers, and actuators. By replacing legacy protocols like CAN and FLEXRAY, TSN offers a unified and future-ready communication standard for the automotive industry.

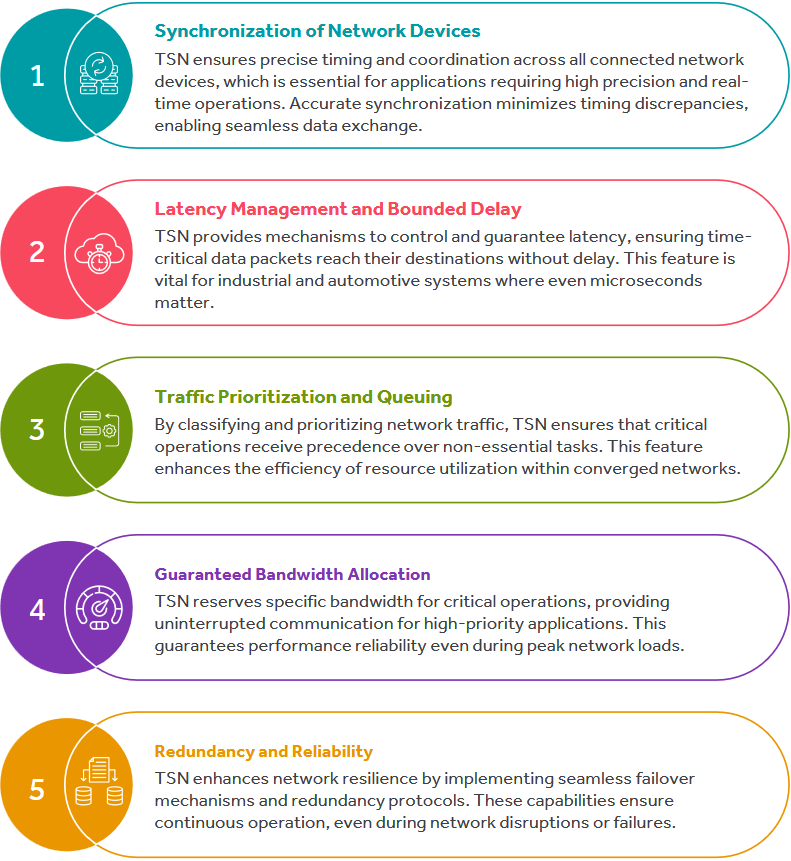

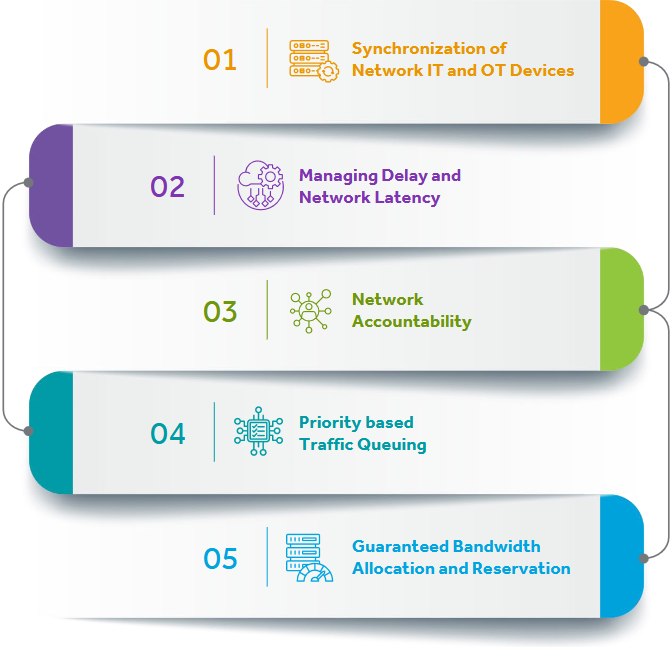

Core Features of TSN
Time-sensitive networking (TSN) is characterized by its ability to deliver reliable, real-time communication within complex network environments. By addressing the specific demands of time-critical applications, TSN introduces groundbreaking features that transform traditional Ethernet into a deterministic communication framework. These core features form the backbone of TSN’s functionality:
Enterprise businesses rapidly adopting Time-Sensitive Networking (TSN) include industries such as mining, utilities, automotive, rail, and aerospace. While Ethernet remains the most widely used networking technology, it traditionally operates on a best-effort basis, which can introduce unpredictability in data transmission. TSN, an evolution of Ethernet, enables deterministic networking, ensuring reliable and time-critical communication. Key features of TSN include:
TSN eliminates the need for physically separating critical and non-critical communication networks across IT and OT networks. It allows same-channel data communication across Operations Networks and IT enterprise networks that revolve around IIoT using the same communication network at Enterprises. TSN can be implemented in industrial devices by integrating switched endpoints, switches, and associated network system software. The advantage is that FPGA can be reconfigured based on new TSN Standards without much rework and effort.
Ethernet is the most adopted and widely accepted networking technology implemented, and it operates on a best-effort-based delivery mechanism to transfer packets across a network. It complies with Ethernet and Time-Sensitive Networking standards which enables Ethernet to become a deterministic networking technology.

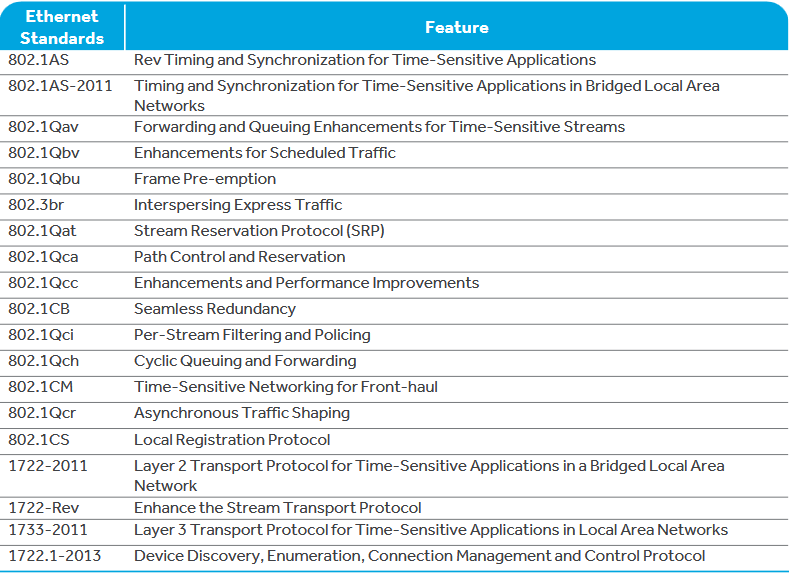

Coral of TSN Standards
TSN leverages many IEEE standards to manage and address various issues and add-on network functionalities. These standards, some active and others under development, ensure robust and deterministic networking for critical applications. Below is a summary of key TSN standards:
Seamlessly integrating TSN capabilities into Communications for Enterprise (C4E) businesses can help deliver the significant necessary network improvements
OT and TSN Networks
TSN capabilities can enable the co-existence of different types of traffic on the same network depending on its operational needs. Enabling such OT connectivity and network devices to be successfully deployed and managed and ensuring interoperability and conformance with the IEEE-defined TSN standards is essential and is the most critical piece toward Private 5G Networks (P5G) from an IR 4.0 Network Integration. C4E Network Automation from an IR 4.0 automation consisting of real-time detection, monitoring, tracking and closed-loop decision making, IoT Sensor integration and Enabling Automation for C4E domains - such as Intelligent Factory Automation and Scada/IoT Utilities Sensor Integration, Aero IoT Sensor integration, Rail Scada/IoT Sensor Integration, AGV Automation, Automotive Sensor Integration. TSN offers deterministic, real-time communication that allows different OT/IT equipment to work seamlessly.
Applications of TSN in C4E Industries
1. Automotive
There is an increasing demand forecast for the adoption of Automotive Ethernet systems in the automotive industry in the coming years. Some of the key features driving the need for TSN Networks in this industry include:
- High data rates: Enable high-speed, high-volume data communication management.
- Low latency: Provides minimal delay for real-time systems, such as AD/ADAS feature enablement and quick decision- making capabilities powered by machine learning.
- LIDAR and RADAR inputs: Supports 2D, 3D, and video-based decision-making.
- Lane Assist Programs: Enhances driver safety and convenience.
- V2X feature enablement: Facilitates vehicle-to-everything communication for improved connectivity.
- High reliability: Offers robust noise immunity for uninterrupted communication.
- Lightweight, space-efficient, and cost- effective cabling: Reduces overall vehicle weight and cost.
- Standardization: Based on well-established standards from reputable standards bodies.
- Zonal controller integration: Streamlines autonomous driving architecture.
- Replacement of legacy protocols: Phases out protocols like CAN and FlexRay for internal automotive communications.
- Deterministic communication: Ensures seamless and predictable performance for infotainment systems.

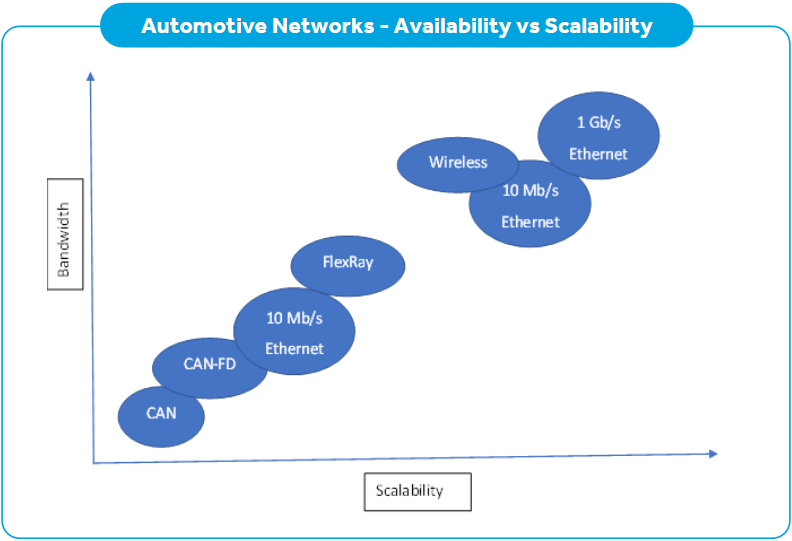

Unlike non-automotive Ethernet, automotive Ethernet cables use PAM3/PAM4 modulation to achieve high data rates and reliability. Here’s an example of the adoption of TSN Ethernet implementation at automotive domain.

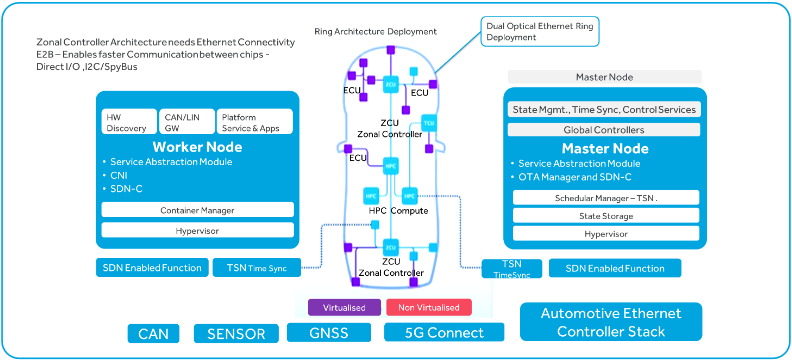

Ref. Architecture for TSN Ethernet in SDV
2. Mining
- Real-time data analytics using IoT sensors and RF drones.
- TSN’s low-latency capabilities improve underground communication and safety.
- Scheduling algorithms manage delay constraints in multi-hop communication networks.
3. Utilities and Energy
- Integration with IEC 61850 for power substation automation and prepaid meter deployment
- Enhanced cybersecurity and synchisation protocols for smart grids.
- Precise-Time Protocols ensure accurate time synchronization across equipment.
4. Aerospace and Rail Networks
- Integration of TSN in SCADA systems for seamless operations.
- Real-time data sharing between IoT sensors for predictive maintenance.
