AI and ML

AI and ML are redefining computational paradigms. AI mimics cognitive functions such as learning, problem-solving, and decision-making, while ML specifically focuses on developing algorithms that are capable of learning patterns from data without explicit programming. The principles of machine learning involve training models on large datasets, validating their accuracy, and continuously refining them to enhance their predictive capabilities.

Geometric Deep Learning

Geometric Deep Learning (GDL) is an emerging domain within AI that extends traditional deep learning methods to handle non-Euclidean data structures such as graphs, manifolds, and point clouds. Unlike conventional deep learning, which operates on grid-like data like images or sequences, GDL incorporates geometric principles to interpret complex and irregular structures. It leverages symmetries, invariances, and geometric priors to develop models capable of analyzing data with rich geometric and topological features. GDL has broad applications across computer vision, natural language processing, drug discovery, and social network analysis. By generalizing neural network architectures to non-Euclidean domains, GDL enables more nuanced and accurate modeling of real-world phenomena.

AI and ML significantly enhance the efficiency and accuracy of Finite Element Analysis (FEA) simulations across various fields. By integrating AI techniques, simulations can be executed faster and more effectively, reducing both computational time and cost. ML models trained on extensive datasets can predict simulation outcomes and optimize parameters, delivering more precise and reliable results. In Explicit dynamics, for example, machine learning algorithms can analyze data from crash, blast, metal forming; etc, traditionally time- and resource-intensive processes, and accelerate them through automated learnin.. Additionally, AI-powered reduced-order modeling (ROM) simplifies complex models, allowing engineers to assess system behavior with minimal computational overhead. This synergy between AI and simulation drives innovation by supporting rapid prototyping, more effective design cycles, and improved engineering decision-making.

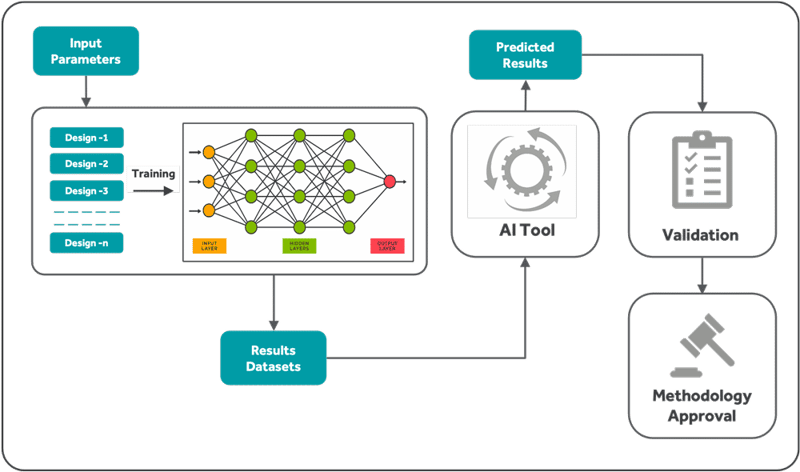

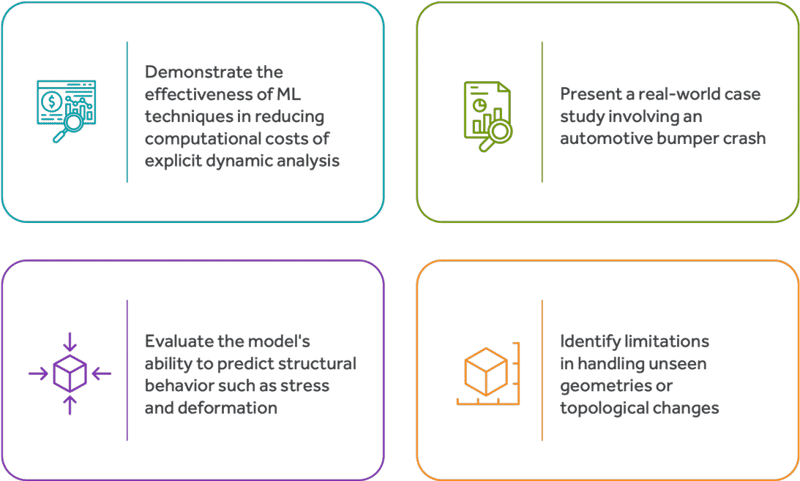

Objectives and Scope of the Work

Key Terminologies

• Geometric Deep Learning (GDL): The core technology behind PhysicsAI. Unlike traditional machine learning which often relies on predefined parameters, , GDL directly operates on the geometric data (3D meshes and CAD models) from CAE simulations. It learns relationships between the geometric shape and full contour results.
• Dataset: A collection of historical CAE simulation results used for training or testing a ML models. Typically includes  input geometries and corresponding physics outputs (e.g., stress, strain, temperature, pressure fields).
• Data Source: PhysicsAI supports various CAE file formats  (including .h3d and others compatible with HyperView), enabling organizations to leverage legacy simulation data.
• Inputs: Model features used for predictions, such as cae.coord (spatial coordinates), cae.part_label (part names).
• Outputs: Physical quantities that model is trained to predict, such as pressure, stress, displacement, etc.

• Training Loss Curves: Diagnostic tool that chart the value of the loss function over training epochs. They help detect underfitting or overfitting by comparing:
• Training Loss: Error on the training dataset.
• Validation Loss: Error on unseen validation data. Ideally, both curves should converge Persistent gaps may indicate underfitting  or overfitting.

• Error Percentage Calculation: Used to quantify prediction accuracy:

Where:

Max_True is the maximum fringe value from the ground truth simulation.

Max_Pred is the maximum fringe value from the AI-predicted result.

Case Study

Automotive Bumper Crash Simulation

In the automotive industry, bumper crash tests are crucial for assessing vehicle safety and durability. These tests simulate real-world impacts to assess how effectively bumpers can absorb energy and protect occupants.

Methodology

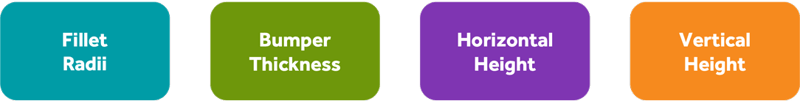

A bumper impact analysis model was developed to study the influence of design parameters on performance. The following parameters were varied:

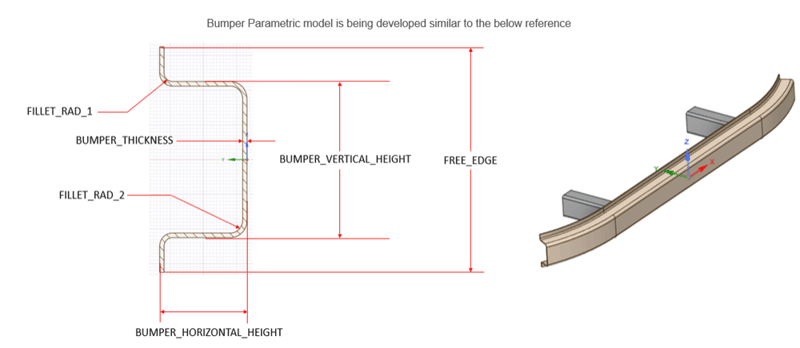

Fig: Picture showing the Parametric Model Used.

These variations resulted in 45 distinct models, forming the dataset used for ML training through a Design of Experiments (DOE) approach.

Model Development

Altair PhysicsAI, powered by GDL, was used to train machine learning models on the collected dataset. Separate models were developed to predict three mechanical outputs: displacement, stress, and strain. The dataset was split 80/20 for training and testing to ensure robust evaluation.

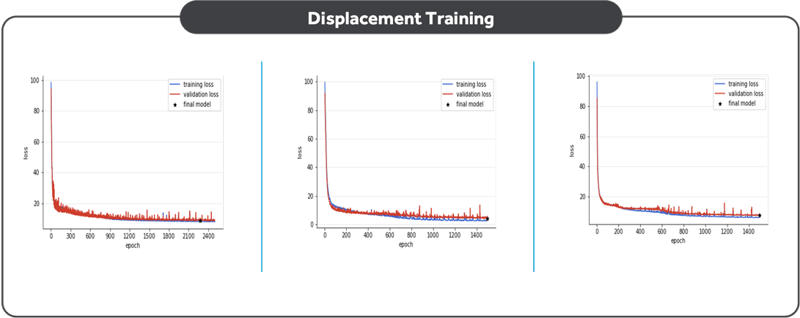

Loss curves for each output type were monitored during training to assess model performance and convergence. The resulting curves confirmed that the models generalize well to unseen geometries.

Validation and Testing

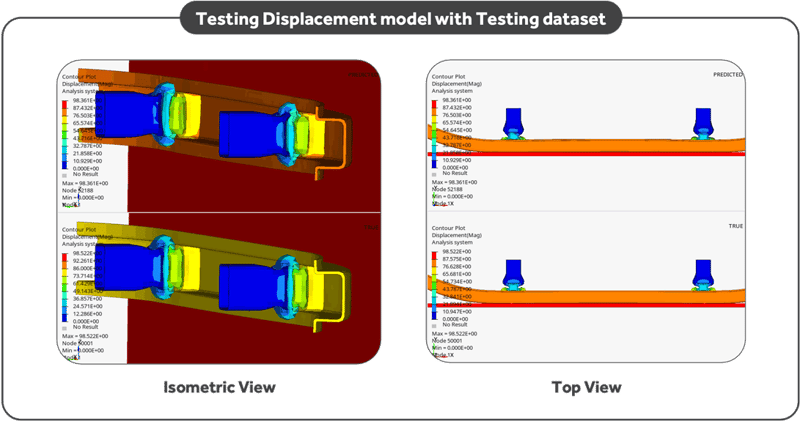

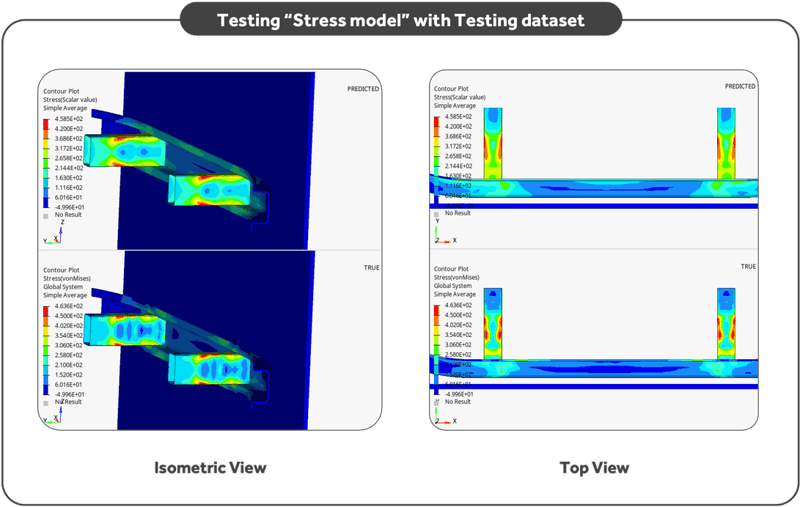

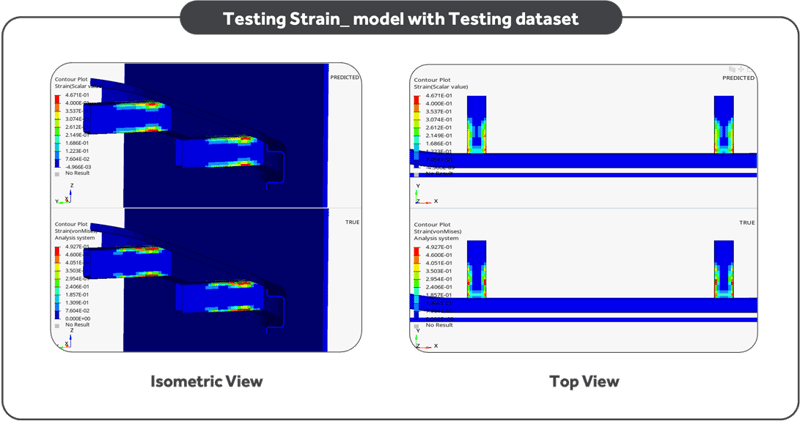

Model testing:

The trained ML models were then tested using test dataset. This step involved comparing the true results with the predicted results from the AI models to evaluate their accuracy and reliability.

The Error Percentage is 0.163415278%

The Error Percentage is 2.1958%

The Error Percentage is 1.1%

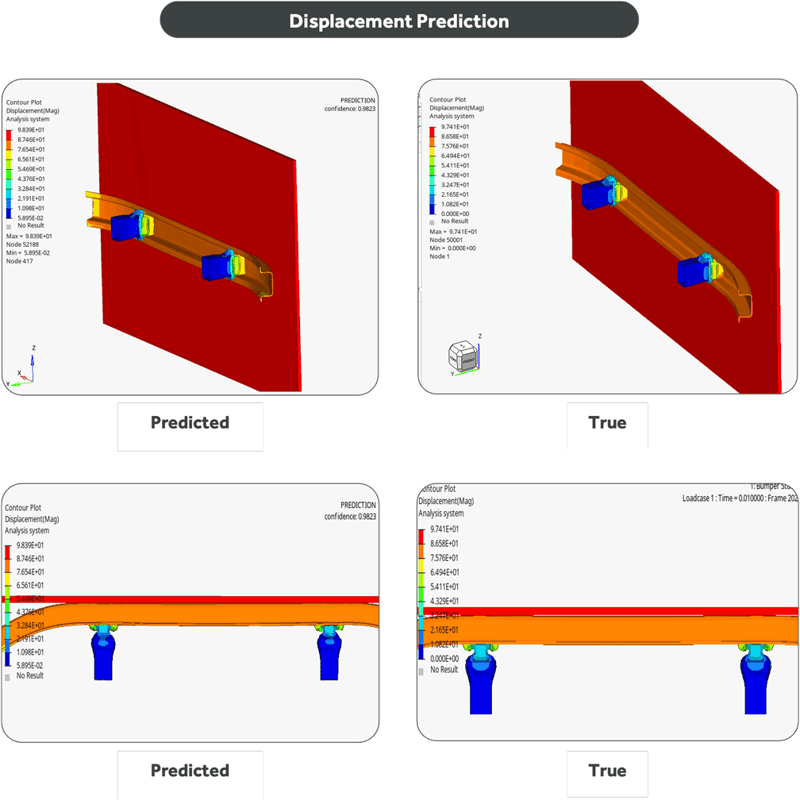

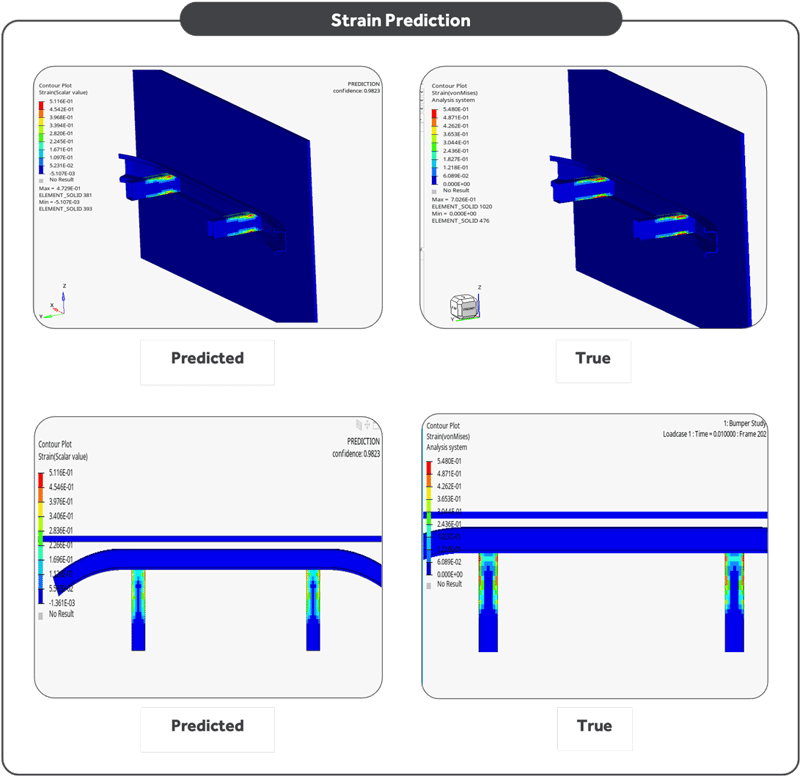

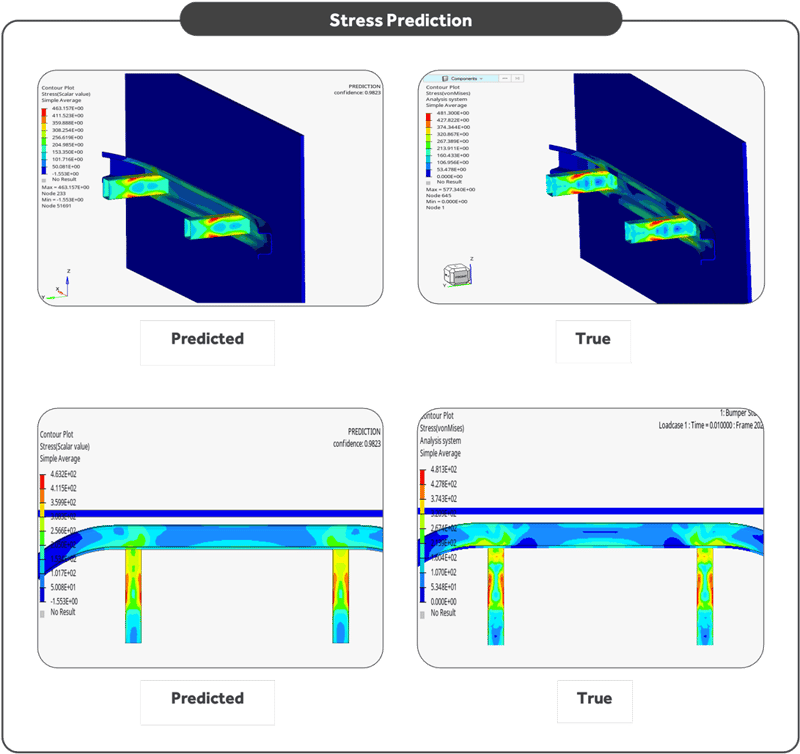

Model Prediction:

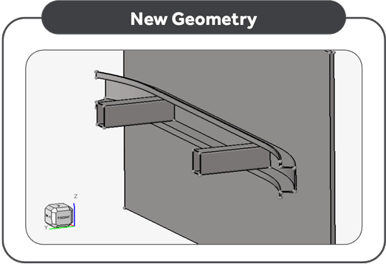

For the final step, predict results for a new geometry with the relevant ML models. Using the developed models, successfully predicted displacement, stress, and strain for the new geometry.

The Error Percentage is 1.006%

The Error Percentage is 6.6%

The Error Percentage is 3.76%

The Confidence score signifies that the new design approaches closer to the trained models. This will vary from 0-1.

Effectiveness of AI and ML

The case study illustrates how PhysicsAI drastically reduces simulation costs and time using geometric deep learning. Unlike conventional simulation methods that require extensive computational resources, PhysicsAI learns from previous simulations and directly applies insights to new designs. Predictions are generated within seconds or minutes, even for complex geometries.

• Manual effort is significantly reduced. Traditional workflows often require extensive preprocessing, geometry cleanup, meshing, and setup. With PhysicsAI, much of this is automated, enabling engineers to focus on high-value tasks such as analysis and design optimization.
• Rapid design exploration becomes possible with the platform’s cloud-connected burst compute capabilities, which allow hundreds of simulations to run simultaneously across GPUs. This is particularly impactful in crash scenarios, where multiple variants must be evaluated for compliance and safety. Engineers can quickly iterate and optimize designs, resulting in safer, higher-performing components.


Limitations of AI and ML

Despite their advantages, AI and ML present several limitations:

• Training Data Quality: The accuracy of ML models heavily depends on the quality and diversity of training data. Biased or insufficient datasets can lead to unreliable predictions.
• Generalization to Unseen Geometries: Models may not perform well when applied to geometries outside the scope of the training data, especially if there are significant topological changes.
• Initial Investment: Building comprehensive datasets and developing robust models requires significant time, expertise, and resources, which may pose a challenge for smaller organizations.
• Tool Limitations: In the case of PhysicsAI, predictions are reliable only within the dimensional variations of the training dataset. Major changes to topology may fall outside the model’s predictive capability.

These constraints highlight the importance of ongoing research, data quality management, and thoughtful model development to fully leverage AI in simulation-driven design.

Conclusion

A machine learning model was successfully developed and validated using Altair PhysicsAI, leading to significant reduction in the time and resource requirements for explicit dynamic bumper impact analysis. This case study demonstrates the transformative potential of AI and ML in engineering simulations, enabling faster design exploration, reducing computational costs. And improving workflow efficiency in traditionally simulation environments.

Future Work

Future efforts will focus on expanding the dataset to encompass a broader range of impact scenarios and bumper geometries, thereby enhancing the model's generalization capabilities. The applicability of this  methodology will also explored across other explicit dynamic analysis domain. Additional work will aim to improve model accuracy and robustness, ensuring reliable performance under increasingly complex and varied conditions.
