AI-Enabled Carotid Stenosis Assessment

This paper presents a method for evaluating ischemic stroke risk through the quantification of carotid artery stenosis using deep learning techniques. By employing U-Net architecture, we achieve accurate segmentation of carotid arteries from longitudinal and transverse 2D ultrasound images. This allows for precise measurement of artery diameter and lumen area reduction. Furthermore, we produce a comprehensive 3D model of carotid artery, enhancing the assessment of stenosis severity, a major contributing factor to ischemic strokes, which constituted 65.3% of all new strokes globally in 2025. Our AI-powered approach enhances consistency and accuracy, offering significant improvements over traditional manual methods, potentially aiding in timely intervention and stroke prevention.

Introduction

Medical imaging has evolved from basic 2D images to advanced AI systems capable of detecting and quantifying diseases with high precision. A key application is the segmentation of carotid arteries in ultrasound images to assess stroke risk. This paper examines how the U-Net architecture enables precise artery segmentation and quantitative analysis of vascular health by computing the percentage reduction in artery diameter and lumen area, vital for evaluating carotid artery stenosis.

Radiologists utilize carotid ultrasound in both transverse and longitudinal views to evaluate ischemic stroke. The transverse view helps identify and describe the plaque, while the longitudinal view measures its impact on blood flow. Together, these complementary views provide the necessary insights for a comprehensive stroke risk assessment.

Clinical Relevance of Carotid Stenosis Quantification

Ischemic stroke constituted 65.3% of all new strokes globally in 2025 around the world. These strokes occur when a blockage in a blood vessel restricts oxygen-rich blood flow to the brain. One of the major contributors to this condition is carotid artery stenosis—caused by plaque buildup that narrows the arteries supplying blood to the brain.

Quantifying this narrowing through metrics such as the percentage reduction in artery diameter and lumen area is critical for evaluating stenosis severity. Accurate, objective measurements support timely intervention, potentially preventing strokes and minimizing long-term disability.

Methodology

The Traditional Workflow: Manual & Subjective

Traditionally, carotid stenosis is assessed by radiologists interpreting ultrasound images, which is manual and subjective. While effective, this process has limitations:

Time-consuming
Subject to human error
Dependent on operator experience

Deep learning addresses these challenges by offering an automated solution that delivers fast, accurate, and consistent results using semantic segmentation.

a) Dataset and Preprocessing:

The dataset contains ultrasound images of the common carotid artery. Original recordings were saved as DICOM time series and later converted into PNG format. These images were carefully cropped to highlight the area of interest. Each subject contributed 100 images, resulting in a dataset of 1,100 images, all annotated with expert labeled masks.

Standardized Preprocessing Pipeline:

Resizing all images to 256×256 pixels.
Normalization of pixel intensities to a 0–1 range.
Grayscale mask conversion, ensuring clarity in semantic classes (vessel vs. lumen).

b) Model

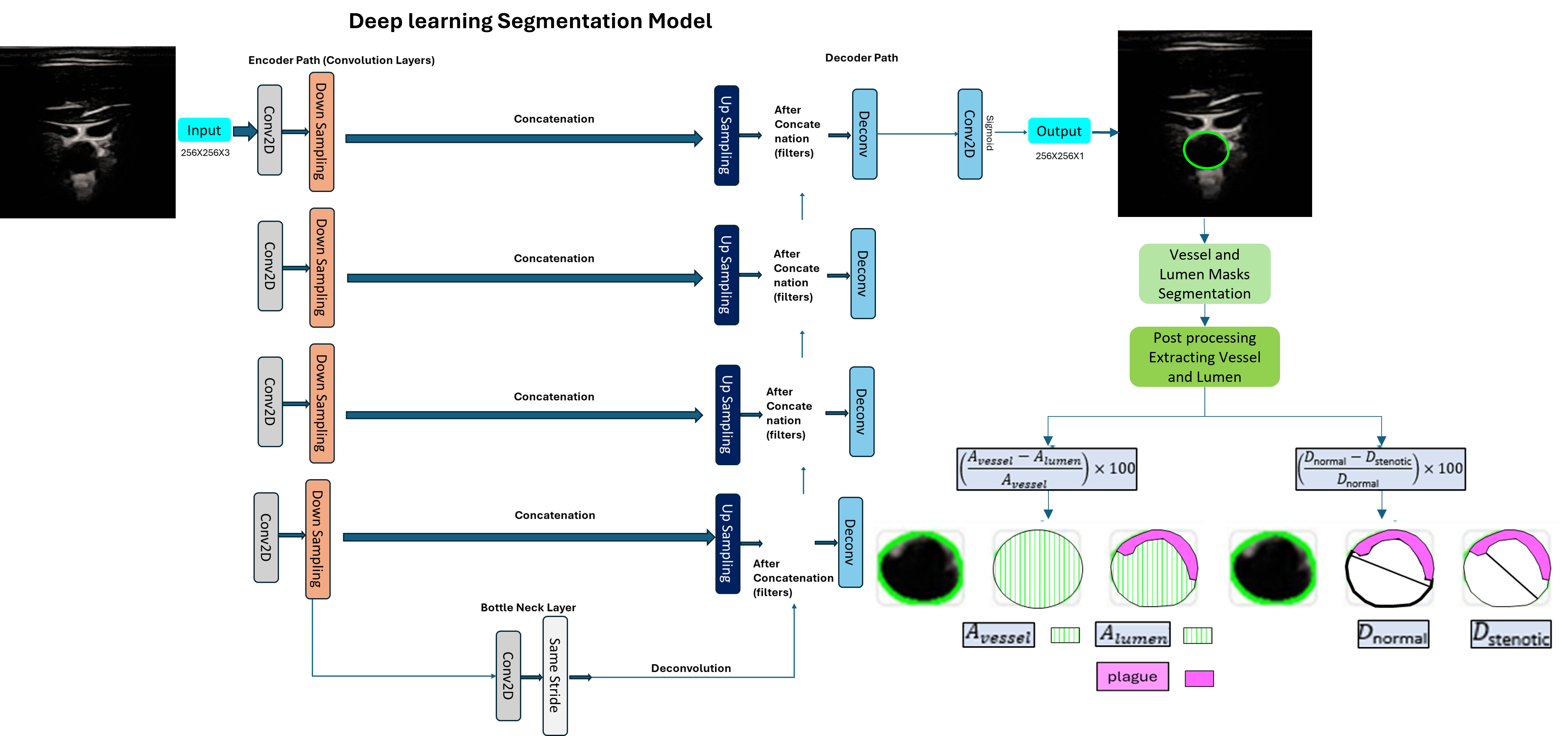

Key Architectural Features of U-Net:

The U-Net model is built for binary image segmentation using a symmetric encoder-decoder architecture with convolutional layers. The encoder comprises four blocks with two Conv2D layers (ReLU, same padding) and MaxPooling2D, progressively increasing filters. A bottleneck with two Conv2D layers connects to the decoder, which up samples using UpSampling2D and skip connections, reducing filters. A final Conv2D (1, 1) layer with sigmoid activation outputs the binary segmentation mask.

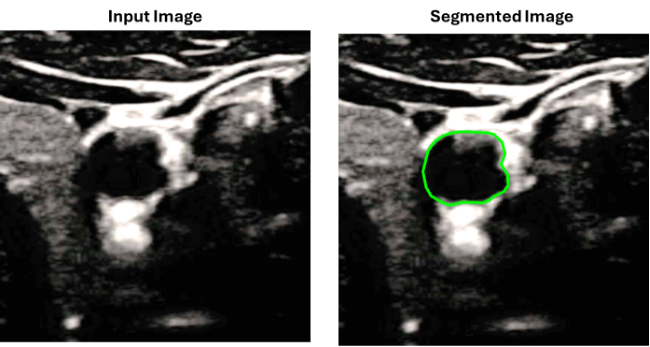

The U-Net model is used for segmentation of Carotid artery at various cross sections to get sectional information like accurate vessel and lumen segmentation.

c) Quantification

The true power of semantic segmentation lies not just in outlining anatomy, but in enabling objective quantitative analysis. Once the vessel wall and lumen are segmented, clinically significant vascular metrics can be extracted.

i) Percentage Diameter Reduction

This metric compares the diameter at the most narrowed point with a proximal, healthy segment providing an indicator of stenosis severity.

ii) Percentage Area Reduction

This compares the cross-sectional area of the entire vessel with that of the lumen, giving a more comprehensive view of occlusion, especially when diameter may be distorted by image artifacts or imaging angles.

With accurate segmentation of the vessel and lumen, clinicians can automatically:

Grade stenosis severity using standardized thresholds.
Track disease progression over time.
Decide on interventions (e.g., stenting or surgery).
Predict stroke risk with greater objectivity and consistency.

This automated analysis complements traditional diagnostic methods, reducing subjectivity and enhancing decision-making, especially in high-volume clinical settings.

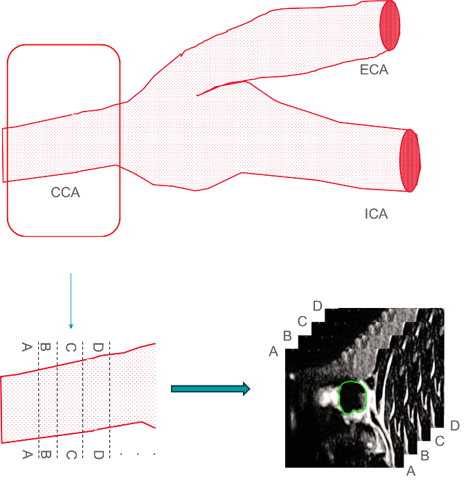

d) Transverse View Slices

The approach to collect the slice-by-slice segments of the transverse view of Common Carotid Artery (CCA) is represented below:

Conclusion

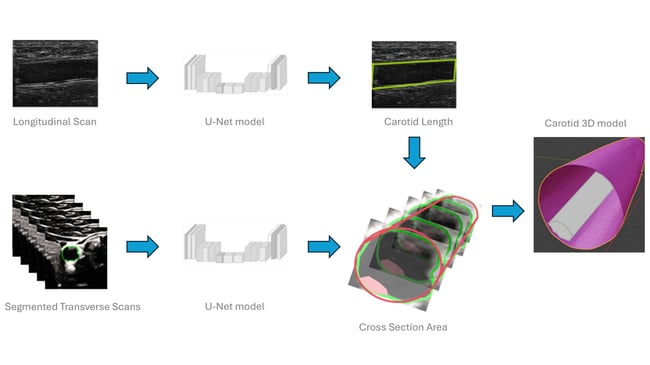

Cyient proposed U-Net-based segmentation pipeline helps rebuild the 3D model of the Common Carotid artery with exact location of the plague and vessel walls and facilitates automated diagnostics. With quick analysis of vascular structures and real-time computation of stenosis metrics, AI can aid in transitioning stroke care from reactive to preventive. Such models can be integrated into portable ultrasound devices, used in low-resource settings, and assist both specialists and general practitioners in making timely and accurate decisions.

References

Momot, Agata (2022), “Common Carotid Artery Ultrasound Images”, Mendeley Data, V1, doi: 10.17632/d4xt63mgjm.1
Biswas, M., Saba, L., Omerzu, T., Johri, A. M., Khanna, N. N., Višković, K., … & Suri, J. S. (2021). A review on joint carotid intima-media thickness and plaque area measurement in ultrasound for cardiovascular/stroke risk monitoring: artificial intelligence framework. Journal of Digital Imaging. https://doi.org/10.1007/s10278-021-00461-2
Najmath Ottakath, Younes Akbari, Somaya Ali Al-Maadeed, Ahmed Bouridane, Susu M. Zughaier, Muhammad E.H. Chowdhury, Bi-attention DoubleUNet: A deep learning approach for carotid artery segmentation in transverse view images for non-invasive stenosis diagnosis, Biomedical Signal Processing and Control, Volume 94, 2024, 106350, ISSN 1746-8094, https://doi.org/10.1016/j.bspc.2024.106350
Inamdar, V., & Pranathi, G. (2023), “Segmentation of the Carotid Artery Using Deep Learning U-Net Technique.” https://api.semanticscholar.org/CorpusID:269138969
Zhou, J., Zhang, Y., et al. Intelligent Segmentation of Intima–Media and Plaque Recognition in Carotid Artery Ultrasound Images. Published in Medical Physics, 2021. Available at: https://pubmed.ncbi.nlm.nih.gov/34872788
Mao, C.-M., Pang, J.-S., & Lo, Y.-T. (2000) Segmentation of Carotid Artery in Ultrasound Images: Method Development and Evaluation Technique DOI: 10.1118/1.1287111 · Source: PubMed.
Jain PK, Dubey A, Saba L, Khanna NN, Laird JR, Nicolaides A, Fouda MM, Suri JS, Sharma N. Attention-Based UNet Deep Learning Model for Plaque Segmentation in Carotid Ultrasound for Stroke Risk Stratification: An Artificial Intelligence Paradigm. Journal of Cardiovascular Development and Disease. 2022; 9(10):326. https://doi.org/10.3390/jcdd9100326
Kristen M. Meiburger, Francesco Marzola, Guillaume Zahnd, Francesco Faita, Christos P. Loizou, Nolann Lainé, Catarina Carvalho, David A. Steinman, Lorenzo Gibello, Rosa Maria Bruno, Ricarda Clarenbach, Martina Francesconi, Andrew N. Nicolaides, Hervé Liebgott, Aurélio Campilho, Reza Ghotbi, Efthyvoulos Kyriacou, Nassir Navab, Maura Griffin, Andrie G. Panayiotou, Rachele Gherardini, Gianfranco Varetto, Elisabetta Bianchini, Constantinos S. Pattichis, Lorenzo Ghiadoni, José Rouco, Maciej Orkisz, Filippo Molinari, Carotid Ultrasound Boundary Study (CUBS): Technical considerations on an open multi-center analysis of computerized measurement systems for intima-media thickness measurement on common carotid artery longitudinal B-mode ultrasound scans,,2022, https://doi.org/10.1016/j.compbiomed.2022.105333
World Stroke Organization: Global Stroke Fact Sheet 2025 https://pmc.ncbi.nlm.nih.gov/articles/PMC11786524/
Molinari F, Meiburger KM, Zeng G, Saba L, Rajendra Acharya U, Famiglietti L, Georgiou N, Nicolaides A, Sriswan Mamidi R, Kuper H, Suri JS. Automated carotid IMT measurement and its validation in low contrast ultrasound database of 885 patient Indian population epidemiological study: results of AtheroEdge™ Software. Int Angiol. 2012 Feb;31(1):42-53. PMID: 22330624; PMCID: PMC3504971.
Ronneberger O, Fischer P, Brox T. U-Net: Convolutional networks for biomedical image segmentation. In: Navab N, Hornegger J, Wells WM, Frangi AF, eds. Medical Image Computing and Computer-Assisted Intervention – MICCAI 2015. Vol 9351. Springer; 2015:234-241. doi:10.1007/978-3-319-24574-4_28
Jiang H, Spence JD, Chiu B. Segmentation of carotid vessel wall using U-Net and segmentation average network. arXiv. Published February 26, 2020. Accessed July 1, 2025. https://arxiv.org/abs/2002.11467
Lainé AF, Cheng K, Moura L, et al. Carotid artery wall segmentation in ultrasound image sequences using a deep convolutional neural network. arXiv. Published January 27, 2022. Accessed July 1, 2025. https://arxiv.org/abs/2201.12152
Deng L, Tian X, Jiang D, et al. Automatic segmentation of ultrasound images of carotid atherosclerotic plaque based on Dense-UNet. Technol Health Care. 2023;31(1):1-11. doi:10.3233/THC-220152
Yu L, Zhou Y, Li Z, et al. Deep learning-based automatic segmentation and evaluation of carotid atherosclerotic plaque in ultrasound images: A review. Neurocomputing. 2023;524:126298. doi:10.1016/j.neucom.2023.126298.
Meiburger, Kristen M.; Zahnd, Guillaume; Faita, Francesco; Loizou, Christos; Carvalho, Catarina; Steinman, David; Gibello, Lorenzo; Bruno, Rosa Maria; Marzola, Francesco; Clarenbach, Ricarda; Francesconi, Martina; Nicolaides, Andrew; Campilho, Aurelio; Ghotbi, Reza; Kyriacou, Efthyvoulos ; Navab, Nassir; Griffin, Maura; Panayiotou, Andrie; Gherardini, Rachele; Varetto, Gianfranco; Bianchini, Elisabetta; Pattichis, Constantinos ; Ghiadoni, Lorenzo; Rouco, José; Molinari, Filippo (2021), “DATASET for "Carotid Ultrasound Boundary Study (CUBS): an open multi-center analysis of computerized intima-media thickness measurement systems and their clinical impact"”, Mendeley Data, V1, doi: 10.17632/fpv535fss7.
