Abstract

Rail Carbody design is a critical aspect of railway engineering, focusing on structural integrity, aerodynamics, weight optimization, and passenger safety. Modern designs incorporate lightweight materials such as aluminum and composites to enhance fuel efficiency and performance. Advanced manufacturing techniques, crashworthiness standards, and ergonomic considerations ensure durability, comfort, and compliance with regulatory requirements.

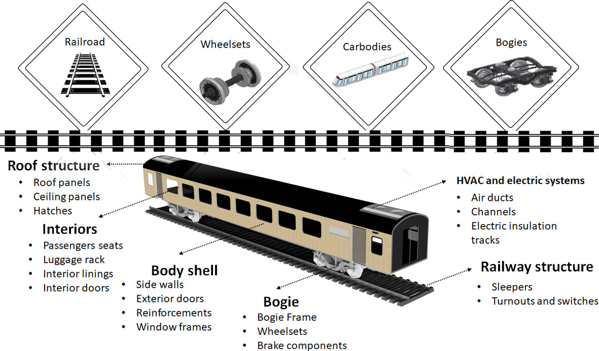

1. Introduction

Rolling stock refers to railway vehicles, including passenger cars, freight cars, locomotives, and maintenance units. The carbody is the primary structural shell, supports operational loads, ensures passenger safety, and accommodates functional systems. Effective design balances weight optimization, strength, manufacturability, and compliance with international standards.


https://4spepublications.onlinelibrary.wiley.com/doi/10.1002/pc.27817

2. Key Design Considerations

2.1 Structural Integrity

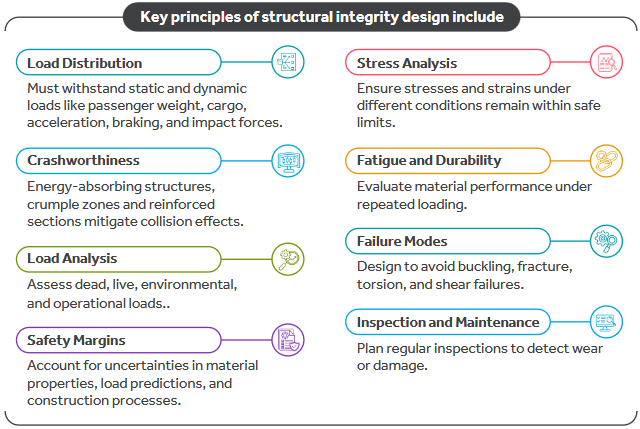

Structural integrity design is the process of ensuring that a structure can withstand its intended loads and conditions throughout its lifecycle without experiencing failure or significant deformation. This involves analyzing and designing components to achieve optimal strength, stability, and durability.

key design consideration

https://www.semanticscholar.org/paper/In-Tern-at-Iona-L-Jou-Rnal-O-F-Vehicle-Structures-%26-Miao- Zhang/6fc0266798b21ae1e7b758e17adc31453cf57582

2.2 Material Selection

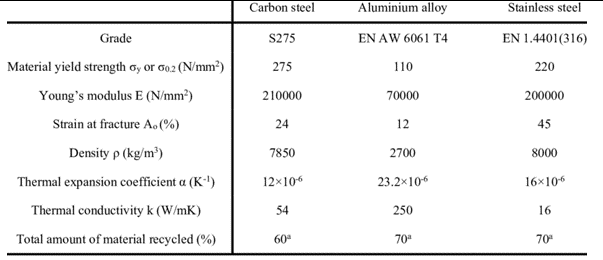

Aluminium, Steel and Stainless steel are the materials used for construction of Carbody. Below, we explore the unique properties, advantages, disadvantages, applications and examples of the same in rolling stock carbody design.

Material Properties Advantages Disadvantages Applications
Aluminium
  • Lightweight (2.7 g/cm³)
  • High corrosion resistance
  • Moderate strength (often reinforced)
  • Reduces vehicle weight, improving energy efficiency and acceleration
  • Excellent corrosion resistance
  • Easy to extrude into complex shapes
  • Lower strength-to- weight ratio compared to high-strength steel
  • Higher material cost
  • Difficult to repair after significant damage
High-speed trains and metro cars (e.g., Shinkansen in Japan)
Steel
  • Dense and heavy (7.85 g/cm³)
  • High tensile strength and impact resistance
  • Susceptible to corrosion (needs protection)
  • Cost-effective and widely available
  • High strength for handling heavy loads
  • Easier to weld and repair
  • Higher weight increases energy consumption
  • Requires regular maintenance to prevent rust and corrosion
Freight cars and locomotives where strength and durability are prioritized
Stainless Steel
  • Moderate density (7.75–8.00 g/cm³)
  • Extremely high corrosion resistance (10.5% chromium content)
  • High durability and moderate tensile strength
  • Exceptional corrosion resistance
  • Low maintenance costs over lifecycle
  • Aesthetic finish and wear resistance
  • Heavier than aluminium
  • Higher material cost than aluminium and regular steel
  • More challenging to machine and form due to toughness
Passenger trains in urban and suburban systems focusing on durability and aesthetics

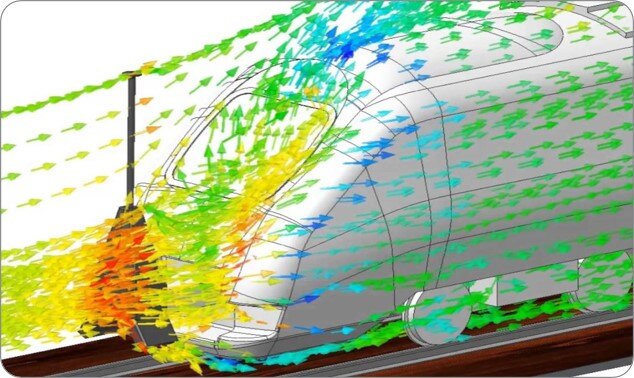

2.3 Aerodynamic Performance

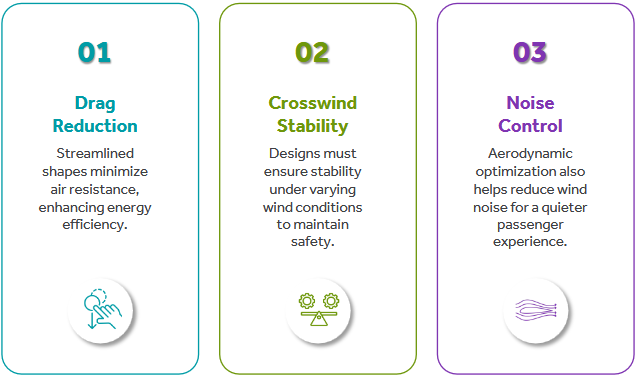

Aerodynamic Performance

Source: https://www.youtube.com/watch?v=FGmYpo-gkpU

2.4 Passenger Safety and Comfort

  • Crash Safety: Compliance with crashworthiness standards (e.g., EN 15227) ensures passenger survival space and energy absorption.
  • Vibration and Noise Mitigation: Integration of damping materials and isolation techniques improves ride quality.
  • Thermal Comfort: Thermal insulation and climate control systems contribute to passenger comfort.

2.5 Regulatory Compliance

  • International Standards: Design must adhere to standards such as UIC, EN, or AAR depending on geographic regions.
  • Fire Safety: Materials and designs should meet stringent fire retardance and smoke toxicity requirements.
  • Accessibility: Compliance with regulations for passengers with reduced mobility, such as wheelchair access and priority seating.

2.6 Maintenance and Lifecycle Considerations

  • Ease of Access: Design should facilitate routine maintenance and inspection of structural and functional components.
  • Durability: Long service life reduces total cost of ownership.
  • Modularity: Modular designs enable easier upgrades and retrofitting.
shutterstock_2363214839

3. Advances in Rolling Stock Carbody Design

3.1 Digital Twins and Simulation

  • Virtual Prototyping: Simulates real-world conditions, reducing physical prototyping cost.
  • Predictive Maintenance: Sensors enable real-time performance monitoring aiding predictive maintenance.

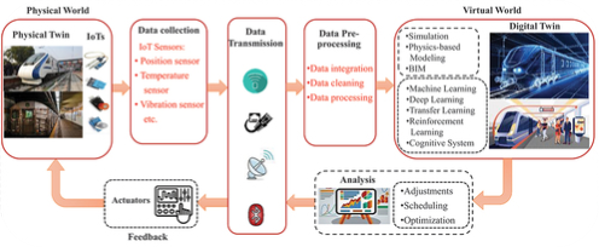

Source: https://www.tandfonline.com/doi/full/10.1080/23248378.2024.2434834?af=R

3.2 Additive Manufacturing

  • Rapid Prototyping: Enables faster prototyping and testing of carbody components, reducing development time and costs.
  • Lightweight Structures: Facilitates the production of complex geometries optimized for strength- to-weight ratio using 3D printing.

3.3 Smart Materials

  • Shape Memory Alloys: Used for adaptive components that adjust to environmental or operational changes, enhancing functionality.
  • Self-Healing Materials: Coatings and composites designed to autonomously repair minor damage, extending the lifecycle of carbody surfaces.
shutterstock_2463514527

4. Best practices / Multidisciplinary Engineering to Improve Carbody design

4.1 Safety Engineering

  • Compliance with standards like EN 15227 ensures crashworthiness enabling energy absorption of up to 1.5 MJ.
  • Crumple zones and reinforced structures reduce impact forces by 40%.
  • Digital simulations cut crash- testing costs by 30%-50%.

4.2 Aerodynamics and Structural Performance

  • Optimized shapes lower drag by 10%, saving 5%-8% energy.
  • Lightweight materials like aluminium composites reduce weight by 25%-35%, improving stability and fuel efficiency.

4.3 Cost-Efficiency

  • Digital prototyping saves $500,000 to $1 million per project.
  • Modular designs reduce assembly time by 15%-25%, and predictive maintenance lowers downtime by 30%-40%.

4.4 Manufacturability

  • Robotic welding ensures 0.2 mm precision, improving quality.
  • Additive manufacturing cuts material waste by 50%-70%.

4.5 Sustainability

  • Recycled aluminium reduces CO2 emissions by 95%.
  • Lightweight designs decrease energy consumption by 15% per passenger- KM.

*All values are based on Market Research Future, Railway Industry Growth Projections.

shutterstock_1879569049

5. Challenges

5.1 Balancing weight reduction with structural integrity

Reducing the weight of train carbodies is a key objective in modern rolling stock design, as it improves energy efficiency and performance. However, achieving this without compromising structural integrity poses significant challenges.

Key Considerations

  • Material Selection:
    • Lightweight materials like aluminum and composites effectively reduce weight but may lack the energy absorption capacity of traditional steel.
    • Hybrid designs (e.g., steel- aluminum composites) balance weight reduction with strength.
  • Crashworthiness:
    • Compliance with standards like EN15227 is essential, requiring trains to absorb substantial impact energy in crash scenarios.
    • Crumple zones and reinforced structures must be meticulously designed to ensure passenger safety.
  • Structural Performance:
    • The carbody must endure dynamic loads, vibrations, and fatigue over its operational lifespan.

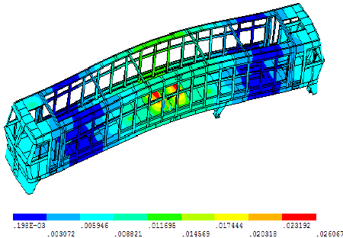

    • Advanced simulations like Finite Element Analysis (FEA) are invaluable in optimizing designs to endure these stresses.

5.2 Ensuring interoperability across different rail networks

Rolling stock must seamlessly operate across various rail networks with differing gauges, signalling systems, and operational standards. Achieving interoperability significantly increases design complexity and costs.

Key Considerations

  • Diverse Standards:
    • Rail systems worldwide vary in track gauges, electrification systems, and safety protocols.
    • Compliance with standards like ETCS (European Train Control System) is essential for cross-border operations.
  • Customization:
    • Adapting designs for specific regions can delay timelines and inflate costs.
    • Ensuring compatibility with infrastructure like platforms and tunnels adds further constraints.
  • Operational Challenges:
    • Differences in signaling systems and power supplies necessitate the development of flexible onboard systems that can adapt to various operational environments.
shutterstock_1655021035

5.3 Integrating advanced technologies while controlling costs.

Emerging technologies like IoT, AI, and autonomous systems enhance safety and efficiency but pose challenges in terms of integration, space, and costs.

Key Considerations:

  • Space and Power Requirements:
    • Advanced sensors, communication modules, and AI systems require additional space and energy.
    • Integrating these systems without compromising passenger capacity or carbody design is critical.
  • System Complexity:
    • Increased reliance on digital systems raises the risk of malfunctions and cybersecurity vulnerabilities.
    • Ensuring reliability and redundancy adds to development costs.
  • Cost of Innovation:
    • Advanced technologies often come with high upfront costs, challenging budget constraints.
shutterstock_2364224715

6. Future Trends

  • Greater use of AI-driven design tools for optimization.
  • Enhanced focus on sustainability through material innovation and energy efficiency.
  • Development of autonomous rolling stock with advanced sensors and control systems.

7. International standards and Regulations to follow for design considerations

  • UIC (International Union of Railways) standards.
  • EN 12663: Structural requirements of railway vehicle bodies.
  • EN 15227: Crashworthiness for railway vehicle bodies.
  • EN 13749: Structural requirements for bogie frames.
  • EN 45545: Fire protection standards for railway vehicles.
  • EN 50155: Standards for electronic equipment in rolling stock.
  • EN 15085: Welding requirements
  • GM/RT 2100 – Structural requirements
38

8. Cyient’s Carbody Capabilities

Cyient provides end-to-end solutions for carbody design and development, managing every phase of the project from initial concept to final delivery. This comprehensive approach ensures the creation of high-quality, efficient, and sustainable vehicles. With the transportation sector evolving rapidly, significant opportunities are emerging to secure additional projects, driven by the increasing demand for eco-friendly and energy-efficient solutions.
