Enhancing Fiber Testing with GIS-Based Fault Mapping

High bandwidth and reliable networks are critical for delivering advanced digital services. As demand grows, accurate fiber measurement and testing become essential for ensuring uninterrupted service quality.

The shift to remote work post- COVID-19, has further intensified the need for stable, hig performance fiber networks. This whitepaper explores the need for fiber measurement and testing, current challenges, and Cyient’s vendor-agnostic solution.

Cyient’s solution leverages Optical Time Domain Reflectometer (OTDR) data, integrating it with inventory and GIS systems to automate fault detection, service impact analysis, and repair workflows. This enables fiber network providers to significantly reduce Mean Time to Repair (MTTR), maintain service-level agreements (SLAs), and enhance customer experience.

Introduction

Optical fiber plays a crucial role in modern communication networks, spanning backhaul infrastructure for mobile operators, last mile broadband connections, and high-speed data centres. The increasing adoption of low-latency 5G and Fiber-to-the-X (FTTX) has further emphasized the importance of fiber networks.

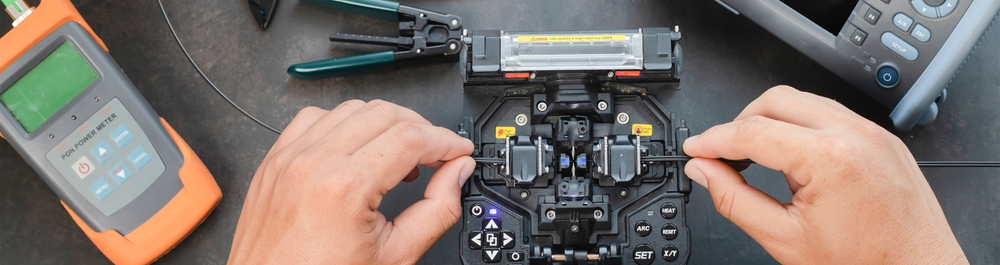

Fiber optic links run across cities, remote landscapes, and even under the oceans. However, link breakages, incorrect splicing, or poor junctions can cause significant communication disruptions. Network operators require a centralized fiber analysis solution to quickly diagnose and resolve fiber faults, ensuring minimal downtime.

Fiber network providers also rely on fiber validation to verify subcontractor work during network expansion. However, current tools lack accuracy and automation in validating fiber installations. A robust fiber measurement and testing solution is essential to maintaining network integrity and ensuring compliance with high-quality standards.

Need for Fiber Measurement and Testing Solution

Fiber testing is the process of assessing optical fiber performance through key measurements such as insertion loss, optical return loss, and fault detection.

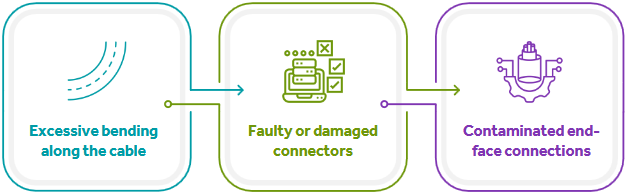

It is critical in detecting malfunctions caused by:

Fiber faults can occur unexpectedly, disrupting critical infrastructure. When a Network Operations Center (NOC) operator receives an unplanned fiber cut notification, rapid fault location and resolution become paramount. Identifying the cut location manually is inefficient, making automated solutions necessary.

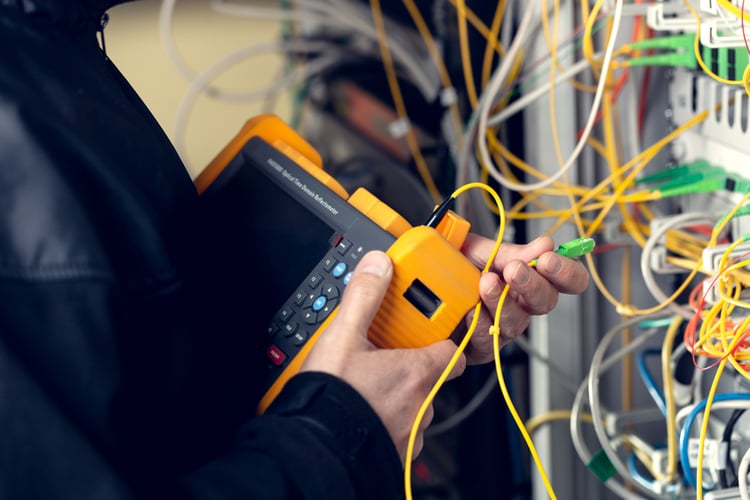

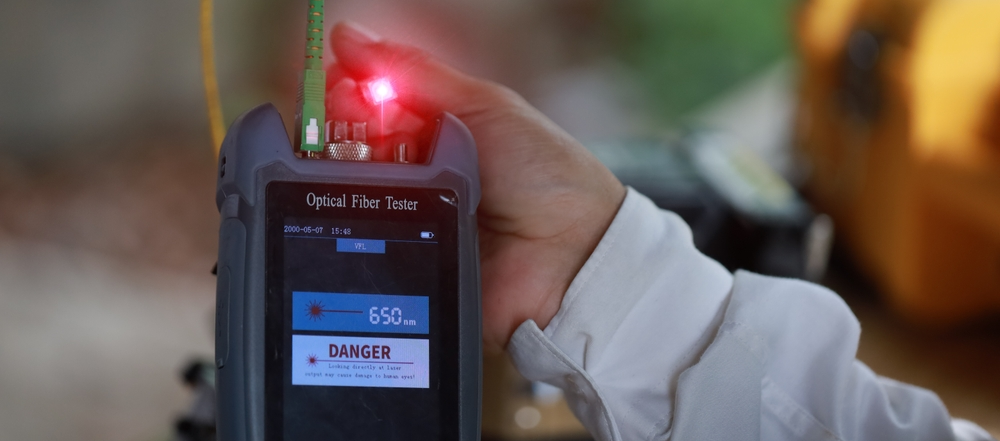

Additionally, regular fiber testing ensures long-term network health, as measurements must be compared against baseline data over time. Engineers and technicians rely on Optical Time Domain Reflectometer (OTDR) instruments to analyze fiber performance, detect faults, and maintain connectivity.

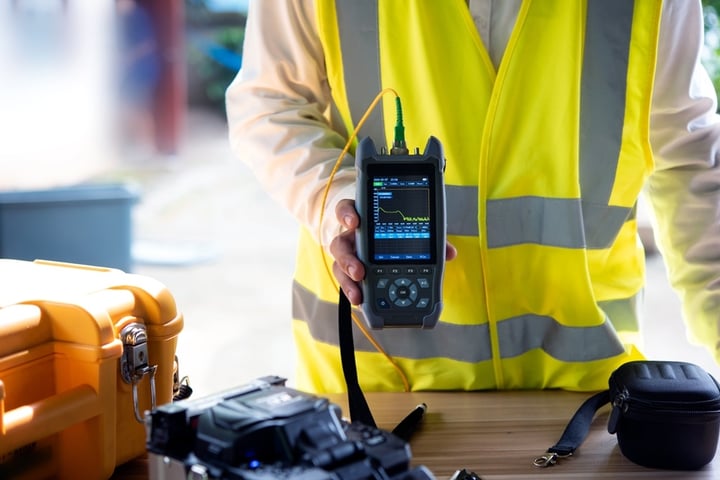

Optical Time Domain Reflectometer (OTDR) – A Key Tool for Fiber Testing

OTDR is a critical instrument for measuring and testing fiber optic networks, providing insights into fiber length, signal loss, and fault locations.. Below are key parameters measured by OTDR:

Parameter	Description
Fiber Length	Measures the total length of the optical fiber.
Event Location	Identifies splices, connectors, and faults.
Optical Loss	Determines signal loss in dB/km.
Reflectance	Measures reflections at connectors, splices, and fiber ends.
Attenuation Coefficient	Calculates the rate of signal loss per unit distance (dB/km).
Splice/Connector Loss	Quantifies loss at specific joints.
Fiber Break Detection	Pinpoints broken fiber sections.
Backscatter Level	Displays scattered light levels for analysis.
Ghosting Identification	Detects false reflections from highly reflective connectors.
Bend Loss	Identifies excessive bending causing high signal loss.

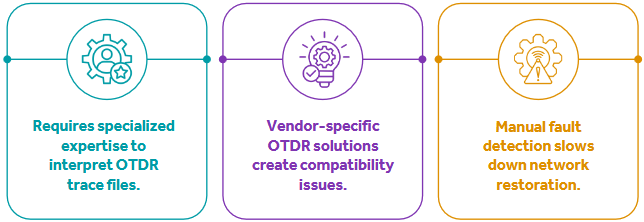

Challenges with Traditional OTDR Analysis:

To overcome these challenges, an automated solution is needed for real-time OTDR data processing.

Existing Solutions and Their Limitations

Several commercial fiber measurement and validation solutions exist, but they often come with limitations. Below are two leading solutions:

Solution	Features	Limitations
FastReporter by EXFO	Batch processing of multiple OTDR traces. Bidirectional fiber link analysis. Customizable reporting.	Designed primarily for EXFO’s OTDR devices. Limited automation for fault detection.
LinkWare PC by Fluke Networks	Project-based test result organization. Batch processing for efficiency. Overlapping trace comparisons.	Primarily supports Fluke Networks' testing devices. Does not integrate with GIS or service impact analysis tools.

Industry Expectations for an Ideal Solution

Fiber Network providers require an advanced fiber measurement and testing solution that addresses current challenges while ensuring efficiency, accuracy, and ease of use. An ideal solution should include the following capabilities:

1. Vendor Agnostic OTDR Support

File Format Compatibility: The software must support industry- standard OTDR trace file formats, such as .sor, ensuring compatibility across different devices.
Comprehensive Analysis Tools: Key features should include batch processing, bidirectional analysis, and customizable reporting to meet diverse fiber testing needs.
User-Friendly Interface: An intuitive interface can enhance operational efficiency and reduce the learning curve for new users.

2. Automated Network Validation

Ensuring fiber installations meet quality standards.

3. Birth Certificate Generation

After the network validation, the fiber operator stores the final fiber measurement as a “Birth Certificate” for future reference. This certificate serves as proof that the fiber met performance standards at the time of deployment, helping network providers demonstrate compliance and maintain trust in their infrastructure quality. Additionally, it acts as a baseline for future comparisons, facilitating efficient troubleshooting, proactive maintenance, and a comprehensive understanding of the network performance over time.

4. Role-Based Access Control

Restricting access based on user roles.

5. AI-Enabled Fault Prediction

Comparing OTDR traces overtime for proactive maintenance.

6. GIS and Inventory System Integration

Providing location-based fault insights.

7. Historical Data Management and Smart Dashboard

Enabling trend analysis and network performance tracking.

Cyient’s Fiber Measurement and Testing Solution

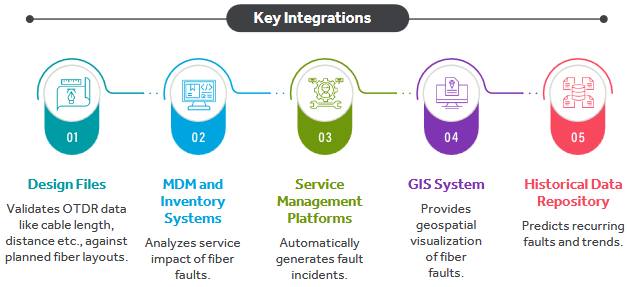

Cyient proposes CyFAS as a comprehensive OTDR analysis platform, integrating with various systems to streamline fiber testing and fault resolution as mentioned in Figure 1.

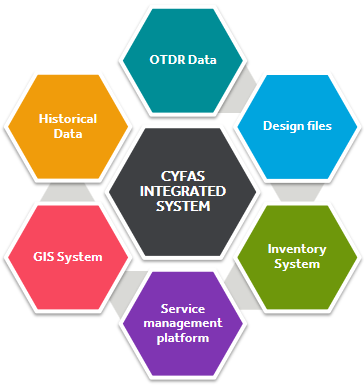

Figure 1: CyFAS Integration with External Systems

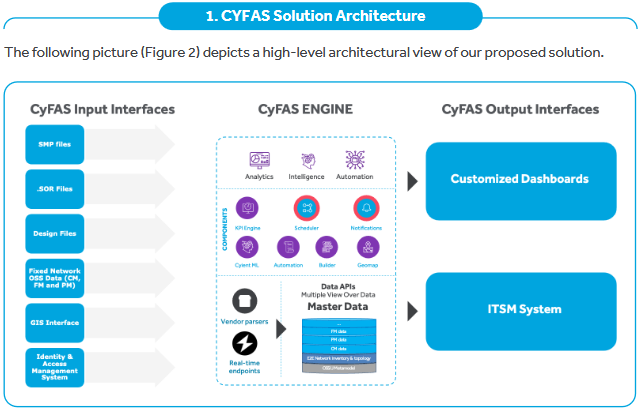

Figure 2: CyFAS Solution Architecture

The solution proposed in the above diagram is based on the current market requirements as understood from various Fiber providers.

The architecture comprises of

A single-pane dashboard displaying network faults and KPIs.

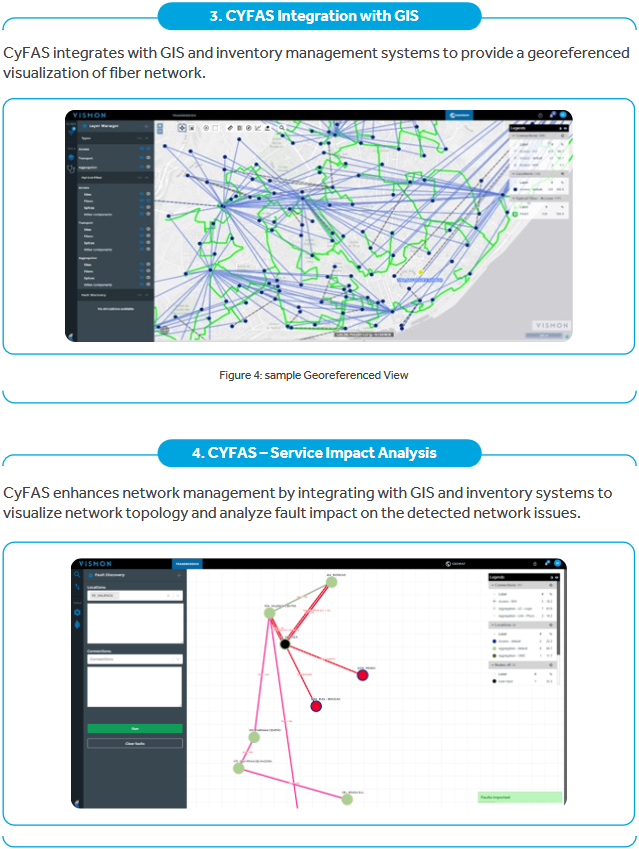

GIS-based visualization for real-time fault location mapping..
Microservices module consisting of CMBD, ITSM & FSM workflows and Low Code/ No Code for necessary workflow creation and modification.
Reports generating issues related to incorrect splicing, fiber bend and others.

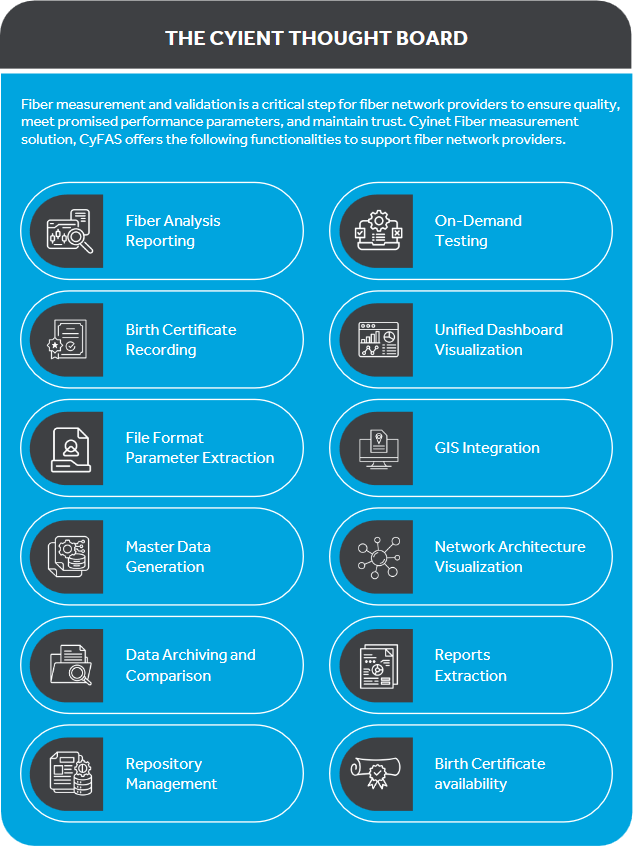

Salient features of CyFAS

Design Data Processing: Extracts and processes key design parameters such as section identifier, splice lengths, etc.

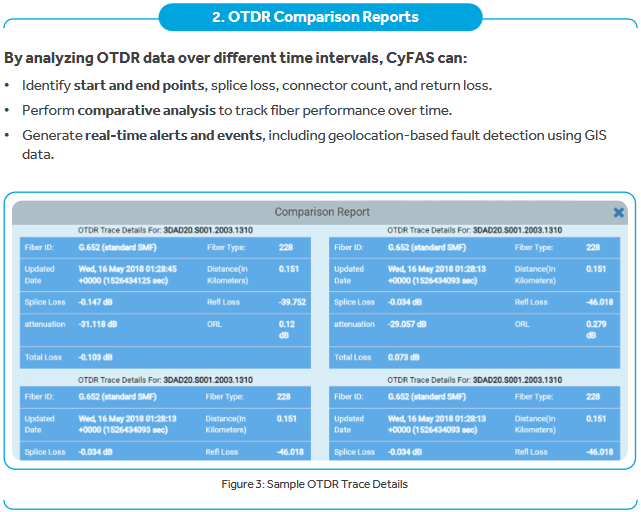

Automated OTDR Data Analysis: Supports batch processing of multiple OTDR trace files (.SOR) at regular intervals.
Centralized Data Management: Stores and manages test results in a secure, centralized database.
Comprehensive Reporting: Generates reports on splice loss, birth certificate details, incorrect fiber lengths and alarm- based threshold breaches, all is accessible via the CyFAS dashboard.

Conclusion

Ensuring reliable fiber networks requires a sophisticated measurement and testing approach. Cyient’s CyFAS solution automates OTDR analysis, integrates with GIS and inventory systems, and proactively predicts faults, enhancing network resilience.

By adopting CyFAS, fiber network providers can:

Reduce Mean Time to Repair (MTTR)
Improve SLA compliance
Enhance customer experience
Minimize service disruptions

Cyient delivers comprehensive end-to-end fiber lifecycle services, encompassing planning, design, quality assessment, OSS/BSS transformation, M&A support, and network operations. Additionally, Cyient has developed innovative solutions like CyPlanet to accelerate fiber planning and design, enhancing efficiency and scalability.

With Cyient’s expertise in fiber network automation, providers can future-proof their infrastructure for the demands of next-generation connectivity.
