Power transmission and distribution were traditionally done through OHL (overhead lines), but OHL are susceptible to damage due to environmental factors such as heavy wind and lightning. Extended power outages can result in significant financial losses for power utilities, substantial production disruptions for industries, and considerable inconvenience for customers. To overcome the limitations of OH lines, underground (UG) cables are employed for power distribution.
The transition from OH power lines to underground cables involves burying electrical lines for improved aesthetics, reduced environmental impact, and enhanced reliability. It often requires significant infrastructure changes and can be more expensive but minimizes visual clutter and reduces susceptibility to weather-related disruptions. The major drawback of underground cables is identifying and repairing faults. This can result in longer outages and increased inconvenience for consumers.
Deployment of the underground power link is growing because of security considerations and upgraded dependability in the circulation frameworks. Underground cables have been of vital importance because of security threats and the need for high-voltage power in populated areas. They offer the advantage of security and are less susceptible to severe weather conditions such as high winds, lightning strikes, or heavy snowfall compared to OHL. The challenge is promptly identifying the location and nature of faults in underground cable lines. Cable failures and the precise detection of cable faults are key issues in underground cable systems.
Conventional systems
Conventional underground fault detection systems employ techniques such as monitoring insulation resistance, measuring cable parameters, or using specialized equipment to locate faults when they occur. The following are some of the conventional methods that are majorly employed for fault detection.
Technicians may visually inspect the area above ground for signs of damage to the cable, such as exposed wires, melted insulation, or scorched ground. While this method can sometimes indicate the general area of the fault, it is not precise enough for accurate fault localization.
Technicians use cable testing equipment, such as insulation resistance testers or TDRs, to assess the condition of the underground cable. These tests measure parameter like insulation resistance, capacitance, or impedance to identify abnormalities that could indicate a short circuit fault.
Thumping involves applying a high voltage pulse to the cable and listening for the distinctive sound by the discharge at the fault location. This method can help technicians narrow down the fault location by listening for the distinctive sound produced by the discharge.
Cable fault locators are specialized instruments that can help pinpoint the location of a short circuit fault along the length of the cable. These devices typically use techniques such as time domain refectory (TDR) or pulse reflection to analyze the electrical characteristics of the cable and determine the distance of the fault.
In some cases, if the fault cannot be precisely located using the methods, technicians may need to excavate the area around the suspected fault location to visually inspect the cable and perform further testing.
Cons of conventional methods:
Traditional methods lack the sensitivity to detect small or intermittent faults, leading to delayed detection and potential service interruptions.
Some conventional techniques only provide localized monitoring, making it challenging to detect faults in larger underground cable networks.
Fault identification and localization using traditional methods can be time consuming, leading to longer outage durations and increased downtime for repairs.
They have limitations in precisely locating the fault location within the underground cable network.

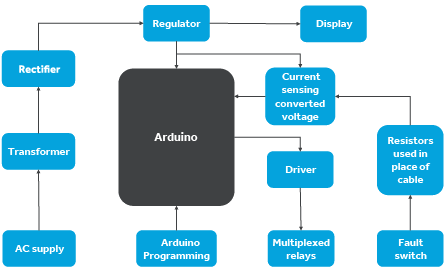

The proposed system helps to determine the distance of the underground cable fault from the base station in kilometers using an Arduino board. This system comprises an Arduino microcontroller, buzzer, and LCD. This reduces time and operates effectively. When a fault occurs, it is difficult to dig out the faulty underground cable without knowing its exact location of the fault. Programs uploaded to the Arduino UNO kit help detect faults in the underground cables. When a fault occurs in the underground cables, we can locate them through the Arduino controller kit. LCD display is used to display the fault distance in km.
In this proposed system, we created faults manually to test its efficacy. Every cable has a unique resistance value, which depends on the material used. The value of the resistance depends on the length of the cable. Resistance is the main function in determining the fault location. If any deviation occurs in the resistance, the value of the voltage changes at that point. Using this system, we were able to accurately locate the fault.
This project uses Ohms Law concept. When a low-voltage DC is applied to the feeder end through a series resistor, the current would differ based on the location of the fault in the cable. If there is a short circuit from line to ground, the voltage across the series resistor alters accordingly. The relay senses it, Arduino recognizes the change in voltage, and then the fault distance is displayed on LCD (16*2) display.
Design:

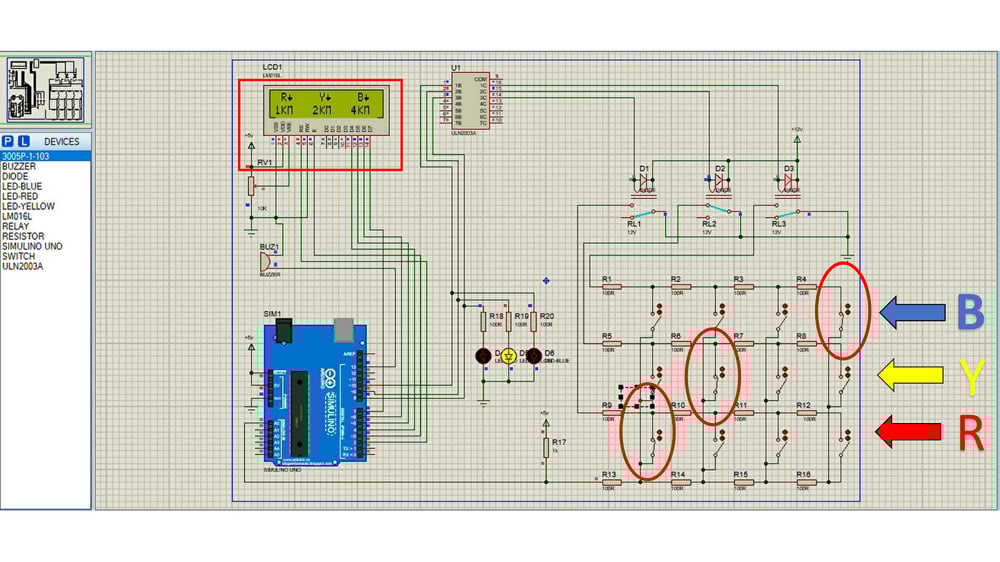

The following faults are created manually by closing the switches:
.png?width=1000&name=phase%20(1).png)

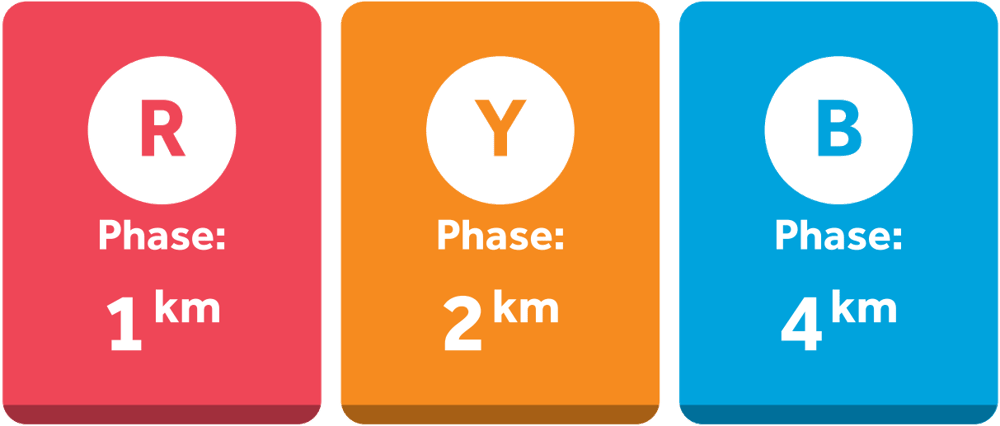

These fault locations are detected by the proposed system and distance and fault phase will be showed in LCD display. The expected results are obtained in the simulation software. Thus, by using the proposed system, the drawbacks of the conventional systems can be overcome.
